Sunon
| Part Number | PMB1297PYB1-AY.(2).GN | Manufacturer | Sunon |
|---|---|---|---|

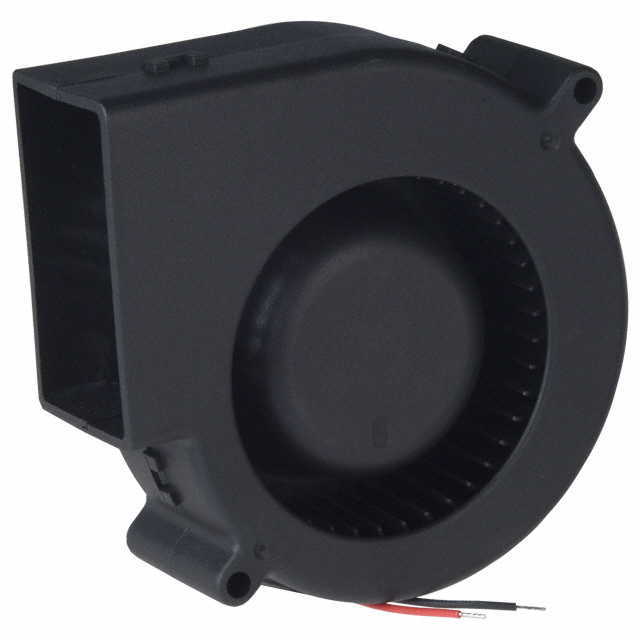

| Description | FAN BLOWER 97.2X33MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3776 pcs | Data sheet | 1.PMB1297PYB1-AY.(2).GN.pdf2.PMB1297PYB1-AY.(2).GN.pdf |
| Width | 33.00mm | Weight | 0.408 lb (185.07g) |
| Voltage Range | 6 ~ 12VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.920 in H2O (229.2 Pa) |
| Size / Dimension | Rectangular/Rounded - 97.2mm L x 94.4mm H | Series | PMB |
| RPM | 3600 RPM | Power (Watts) | 8.60W |
| Other Names | 259-1367 PMB1297PYB1-AY(2).GN PMB1297PYB1AY2GN T1297PYB14A-GRP |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 55.8 dB(A) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Blower |
| Current Rating | 0.720A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 30.5 CFM (0.854m³/min) |
