Sunon
| Part Number | PMB1297PYB3-AY (2) | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN BLOWER 97.2X33MM 12VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4687 pcs | Data sheet | PMB1297PYB3-AY (2).pdf |
| Width | 33.00mm | Weight | 0.408 lb (185.07g) |
| Voltage Range | 10.2 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.430 in H2O (107.1 Pa) |

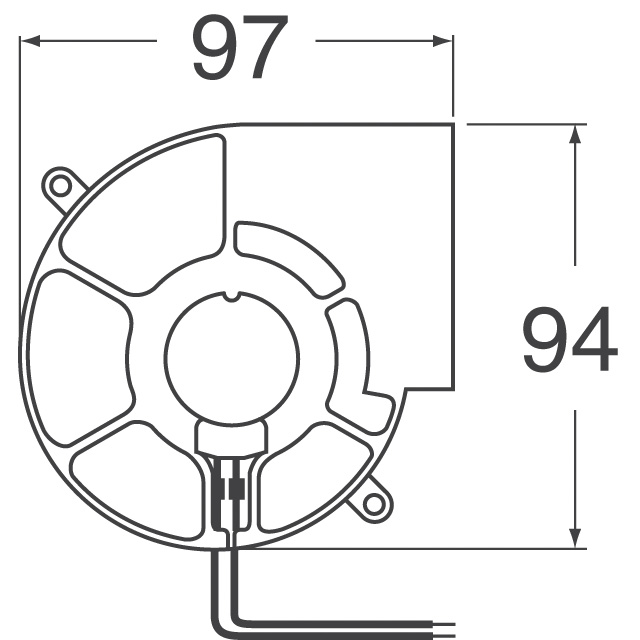

| Size / Dimension | Rectangular/Rounded - 97.2mm L x 94.4mm H | Series | PMB |
| RPM | 2700 RPM | Power (Watts) | 3.60W |
| Other Names | 259-1298 PMB1297PYB3-AY(2) PMB1297PYB3AY2 T1297PYB34AFYWP |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 50.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Blower |
| Current Rating | 0.300A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 22.4 CFM (0.627m³/min) |
