Sunon

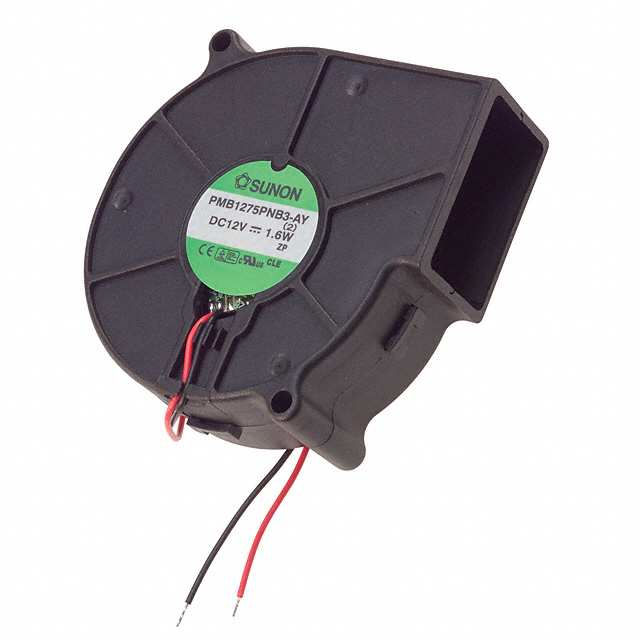

| Part Number | PMB1275PNB3-AY (2) | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN BLOWER 75.7X30MM 12VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5809 pcs | Data sheet | |
| Width | 30.00mm | Weight | 0.191 lb (86.64g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.270 in H2O (67.2 Pa) |
| Size / Dimension | Square/Rounded - 75.7mm L x 75.7mm H | Series | PMB |
| RPM | 2400 RPM | Power (Watts) | 1.60W |
| Other Names | 259-1296 PMB1275PNB3-AY(2) PMB1275PNB3AY2 T1275PNB34A--VP |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 33.9 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Blower |
| Current Rating | 0.130A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 9.6 CFM (0.269m³/min) |
