Sunon
| Part Number | PMB1297PYB3-AY.(2).R.GN | Manufacturer | Sunon |
|---|---|---|---|

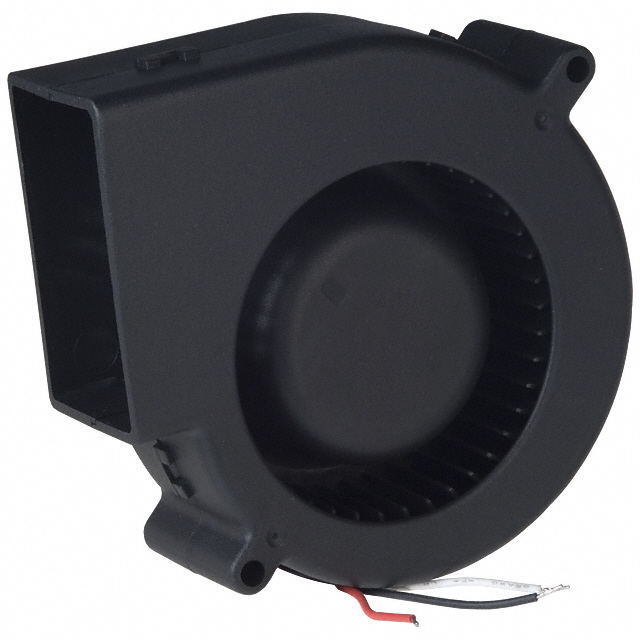

| Description | FAN BLOWER 97.2X33MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5465 pcs | Data sheet | 1.PMB1297PYB3-AY.(2).R.GN.pdf2.PMB1297PYB3-AY.(2).R.GN.pdf |
| Width | 33.00mm | Weight | 0.408 lb (185.07g) |
| Voltage Range | 6 ~ 12VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.430 in H2O (107.1 Pa) |
| Size / Dimension | Rectangular/Rounded - 97.2mm L x 94.4mm H | Series | PMB |
| RPM | 2700 RPM | Power (Watts) | 3.60W |
| Other Names | 259-1368 PMB1297PYB3-AY(2).R.GN T1297PYB34ARGRP |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 50.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Manufacturer Standard Lead Time | 14 Weeks |
| Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Locked Rotor Sensor |
| Fan Type | Blower | Current Rating | 0.300A |
| Bearing Type | Ball | Approvals | CE, CUR, TUV, UL |
| Air Flow | 22.4 CFM (0.627m³/min) |
