PNZ14700R

PanasonicPanasonic

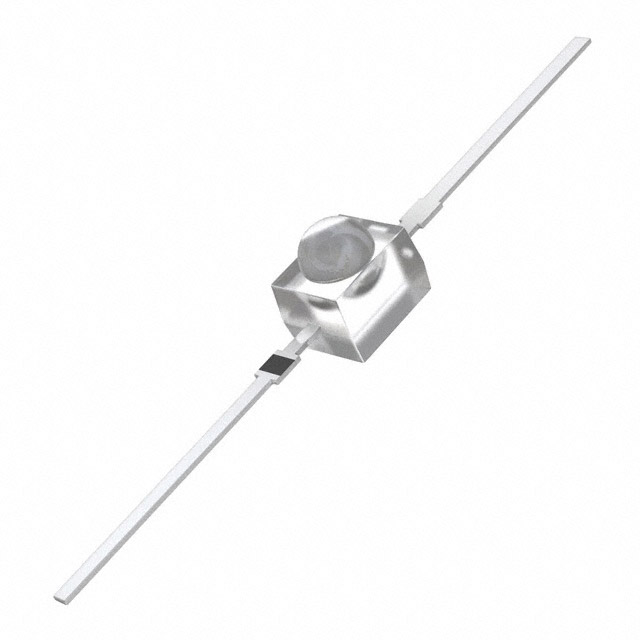

PNZ14700R Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PNZ14700R
Manufacturer/Brand: Panasonic
Product description PHOTO TRANS 800NM 24 DEG AXIAL
Datasheets: PNZ14700R.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4651 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 4651 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PNZ14700R

Part Number PNZ14700R Manufacturer Panasonic
Description PHOTO TRANS 800NM 24 DEG AXIAL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4651 pcs Data sheet PNZ14700R.pdf
Wavelength 800nm Voltage - Collector Emitter Breakdown (Max) 20V
Viewing Angle 48° Series *
Power - Max 50mW Packaging -
Package / Case Axial, Flat Leads Orientation Top View
Operating Temperature - Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Detailed Description Phototransistor 800nm Top View Axial, Flat Leads Current - Dark (Id) (Max) 500nA
Current - Collector (Ic) (Max) 20mA
