PNZ12700S

PanasonicPanasonic

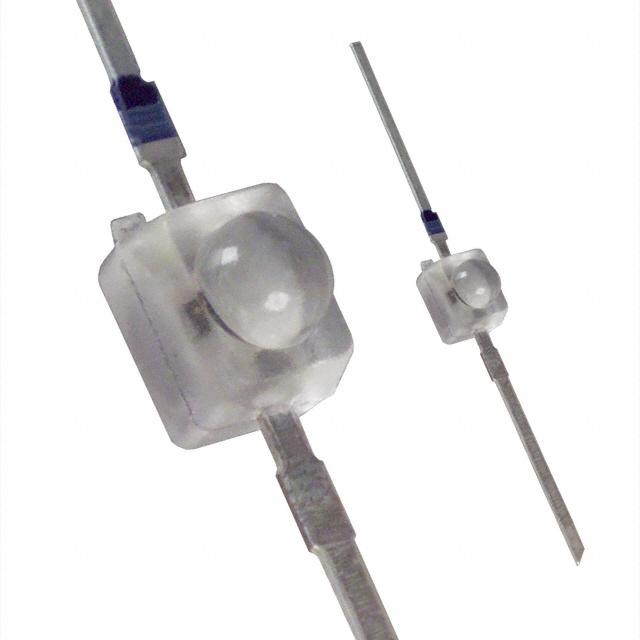

PNZ12700S Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PNZ12700S
Manufacturer/Brand: Panasonic
Product description NPN PHOTO TRANSISTOR
Datasheets: PNZ12700S.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 6368 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 6368 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PNZ12700S

Part Number PNZ12700S Manufacturer Panasonic
Description NPN PHOTO TRANSISTOR Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 6368 pcs Data sheet PNZ12700S.pdf
Wavelength 800nm Voltage - Collector Emitter Breakdown (Max) 20V
Viewing Angle 28° Series *
Power - Max 50mW Packaging -
Package / Case Axial, Flat Leads Other Names PN127-S
PN127-SPA
PN127-SPA-ND
PN127S
Orientation Top View Operating Temperature -
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Detailed Description Phototransistor 800nm Top View Axial, Flat Leads
Current - Dark (Id) (Max) 100nA Current - Collector (Ic) (Max) 20mA
