PNZ109L

Panasonic

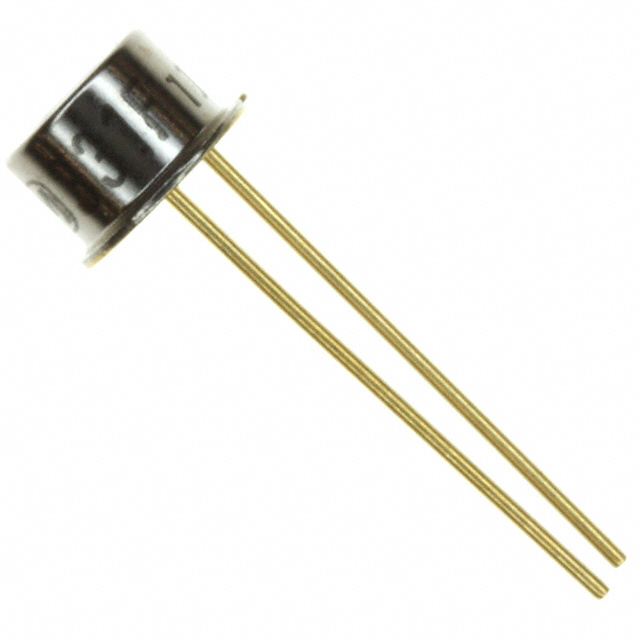

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PNZ109L
Manufacturer/Brand:	Panasonic
Product description	NPN PHOTOTRANSISTOR 900NM TO-18
Datasheets:	PNZ109L.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	22535 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 22535 pcs

Reference Price (In US Dollars)

1 pcs: $1.586

10 pcs: $1.322

25 pcs: $1.11

100 pcs: $0.952

250 pcs: $0.846

500 pcs: $0.767

1000 pcs: $0.703

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.586

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PNZ109L

Part Number	PNZ109L	Manufacturer	Panasonic
Description	NPN PHOTOTRANSISTOR 900NM TO-18	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	22535 pcs	Data sheet	PNZ109L.pdf
Wavelength	900nm	Voltage - Collector Emitter Breakdown (Max)	20V
Viewing Angle	20°	Series	*
Power - Max	150mW	Packaging	-
Package / Case	TO-206AA, TO-18-3 Metal Can	Other Names	PN109L PN109L-ND
Orientation	Top View	Operating Temperature	-
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Detailed Description	Phototransistor 900nm Top View TO-206AA, TO-18-3 Metal Can
Current - Dark (Id) (Max)	2µA	Current - Collector (Ic) (Max)	30mA
