PNZ154

PanasonicPanasonic

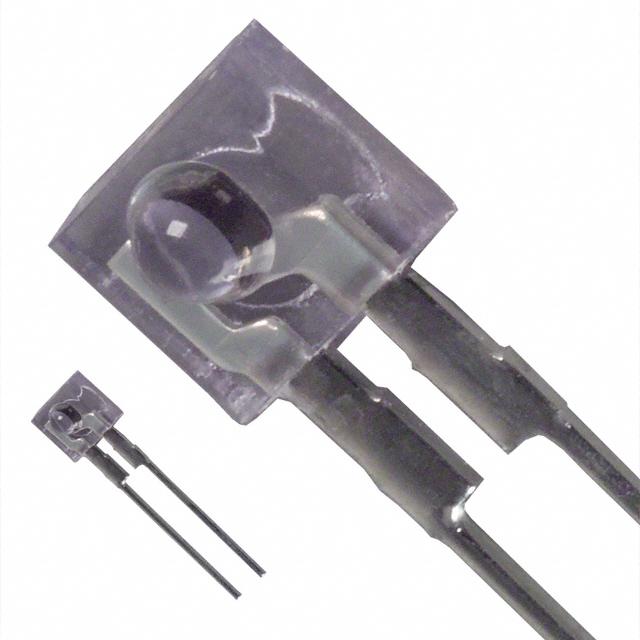

PNZ154 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PNZ154
Manufacturer/Brand: Panasonic
Product description NPN PHOTO TRANSISTOR
Datasheets: PNZ154.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 2864 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 2864 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PNZ154

Part Number PNZ154 Manufacturer Panasonic
Description NPN PHOTO TRANSISTOR Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 2864 pcs Data sheet PNZ154.pdf
Wavelength 800nm Voltage - Collector Emitter Breakdown (Max) 20V
Viewing Angle 54° Series *
Power - Max 100mW Packaging -
Package / Case Radial Other Names PN154
PN154PA
PN154PA-ND
Orientation Side View Operating Temperature -
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Detailed Description Phototransistor 800nm Side View Radial
Current - Dark (Id) (Max) 2µA Current - Collector (Ic) (Max) 20mA
