0545500471

Affinity Medical Technologies - a Molex company

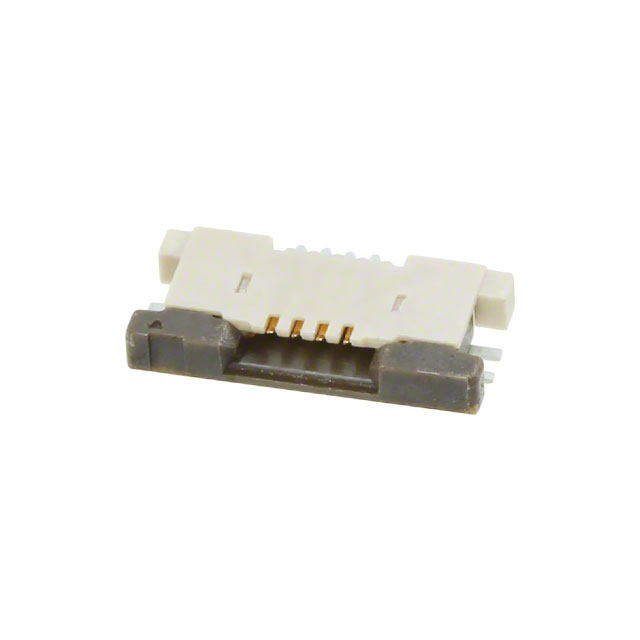

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0545500471
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC FPC TOP 4POS 0.50MM R/A
Datasheets:	1.0545500471.pdf 2.0545500471.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	167729 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 167729 pcs

Reference Price (In US Dollars)

3000 pcs: $0.21

6000 pcs: $0.202

9000 pcs: $0.192

15000 pcs: $0.188

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.21

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0545500471

Part Number	0545500471	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC FPC TOP 4POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	167729 pcs	Data sheet	1.0545500471.pdf 2.0545500471.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 54550	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	054550-0471 54550-0471 54550-0471-TR750 545500471 WM8825TR
Operating Temperature	-20°C ~ 85°C	Number of Positions	4
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	13 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP)
Housing Color	-	Height Above Board	0.047" (1.20mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	4 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Top	Cable End Type	Straight, Tapered
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Color	-
