0545482271

Affinity Medical Technologies - a Molex company

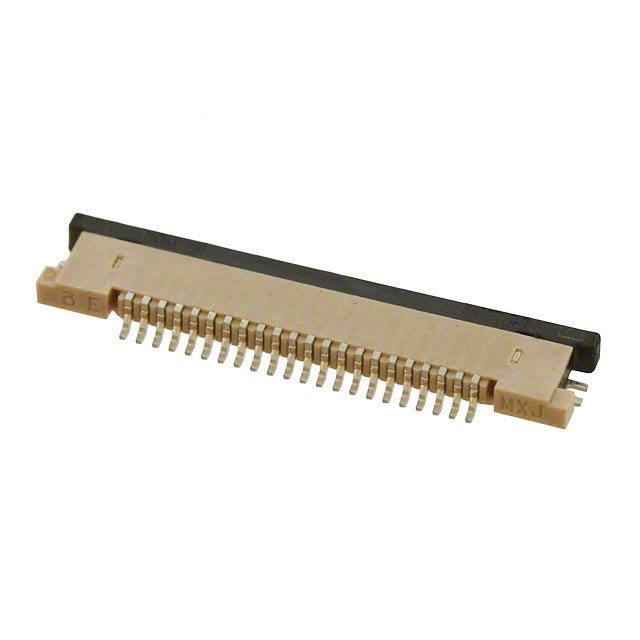

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0545482271
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 22POS 0.50MM R/A
Datasheets:	1.0545482271.pdf 2.0545482271.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	62764 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 62764 pcs

Reference Price (In US Dollars)

3000 pcs: $0.505

6000 pcs: $0.487

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.505

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0545482271

Part Number	0545482271	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 22POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62764 pcs	Data sheet	1.0545482271.pdf 2.0545482271.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 54548	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	054548-2271 54548-2271 54548-2271-TR750 545482271 WM8828TR
Operating Temperature	-20°C ~ 85°C	Number of Positions	22
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP)
Housing Color	-	Height Above Board	0.047" (1.20mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	22 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Straight, Tapered
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Color	-
