0545500633

Affinity Medical Technologies - a Molex company

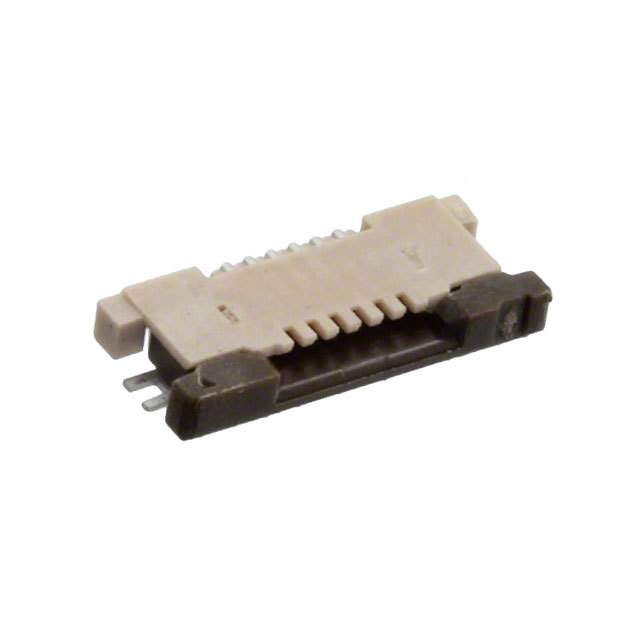

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0545500633
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC FPC TOP 6POS 0.50MM R/A
Datasheets:	1.0545500633.pdf 2.0545500633.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	169597 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 169597 pcs

Reference Price (In US Dollars)

3000 pcs: $0.181

6000 pcs: $0.175

9000 pcs: $0.166

15000 pcs: $0.162

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.181

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0545500633

Part Number	0545500633	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC FPC TOP 6POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	169597 pcs	Data sheet	1.0545500633.pdf 2.0545500633.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 54550	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	0054550-0633 054550-0633 0545500633-ND 54550-0633 545500633 WM11241TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	6
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	13 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	White	Height Above Board	0.047" (1.20mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	6 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	39.4µin (1.00µm)	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Top	Cable End Type	Straight, Tapered
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled	Actuator Color	Brown
