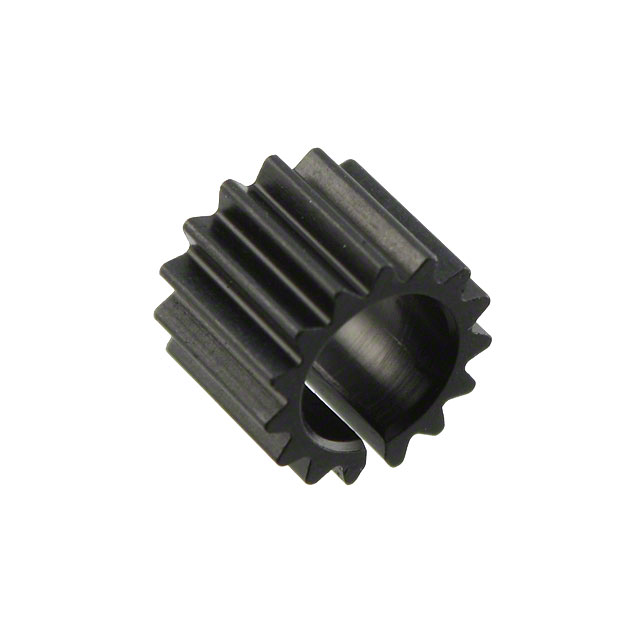

326005B00000G

Aavid Thermalloy

Image may be representation. See specifications for product details.

Product Overview

Part Number:	326005B00000G
Manufacturer/Brand:	Aavid Thermalloy
Product description	HEATSINK TO-5 1W H=.375" BLK
Datasheets:	1.326005B00000G.pdf 2.326005B00000G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	62089 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 62089 pcs

Reference Price (In US Dollars)

1 pcs: $0.625

10 pcs: $0.594

25 pcs: $0.578

50 pcs: $0.562

100 pcs: $0.531

250 pcs: $0.50

500 pcs: $0.469

1000 pcs: $0.437

5000 pcs: $0.422

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.625

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 326005B00000G

Part Number	326005B00000G	Manufacturer	Aavid Thermalloy
Description	HEATSINK TO-5 1W H=.375" BLK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62089 pcs	Data sheet	1.326005B00000G.pdf 2.326005B00000G.pdf
Width	-	Type	Board Level
Thermal Resistance @ Natural	57.00°C/W	Thermal Resistance @ Forced Air Flow	30.00°C/W @ 200 LFM
Shape	Cylindrical	Series	-
Power Dissipation @ Temperature Rise	1.8W @ 90°C	Package Cooled	TO-5
Other Names	000547 2260B 326005B00000 326005B00000-ND HS259	Moisture Sensitivity Level (MSL)	Not Applicable
Material Finish	Black Anodized	Material	Aluminum
Manufacturer Standard Lead Time	9 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	0.375" (9.52mm)
Diameter	0.318" (8.07mm) ID, 0.500" (12.70mm) OD	Detailed Description	Heat Sink TO-5 Aluminum 1.8W @ 90°C Board Level
Attachment Method	Press Fit
