Phoenix Contact

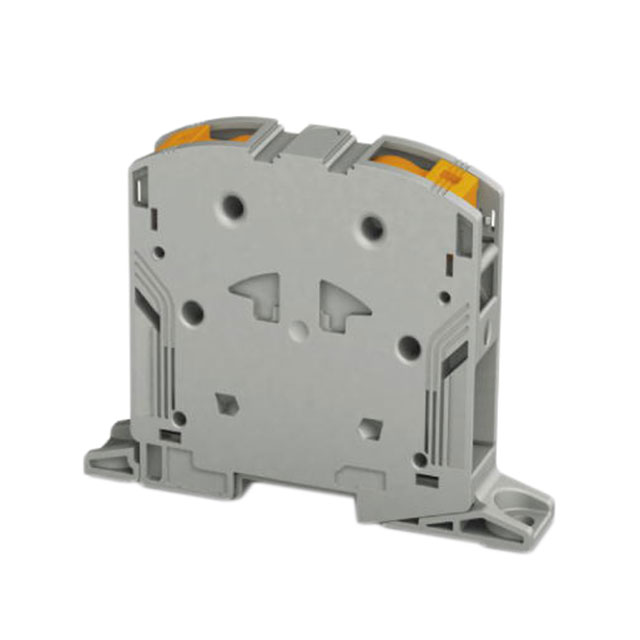

| Part Number | 3260061 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLK MIDDLE 2POS 20.0MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3847 pcs | Data sheet | 3260061.pdf |
| Wire Gauge or Range - mm² | 10-70mm² | Wire Gauge or Range - AWG | 1/0-8 AWG |
| Voltage - UL | 1kV | Voltage - IEC | 1.5kV |
| Type | Middle | Termination Style | Push In, Spring |
| Terminal - Width | 20.0mm | Stripping Length | 30mm |
| Series | CLIPLINE PTPOWER | Other Names | 277-15466 3260061PH 3260061PH-ND PTPOWER 50-F |
| Operating Temperature | - | Number of Positions | 2 |
| Number of Levels | 4 | Mounting Type | Direct Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 2 Weeks |
| Length | 3.976" (100.99mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Color | Gray | Height (Max) | 3.780" (96.00mm) |
| Features | - | Detailed Description | 2 Position Terminal Block Gray Middle 20.0mm |
| Current - UL | 140A | Current - IEC | 150A |
