TY-300P

Triad Magnetics

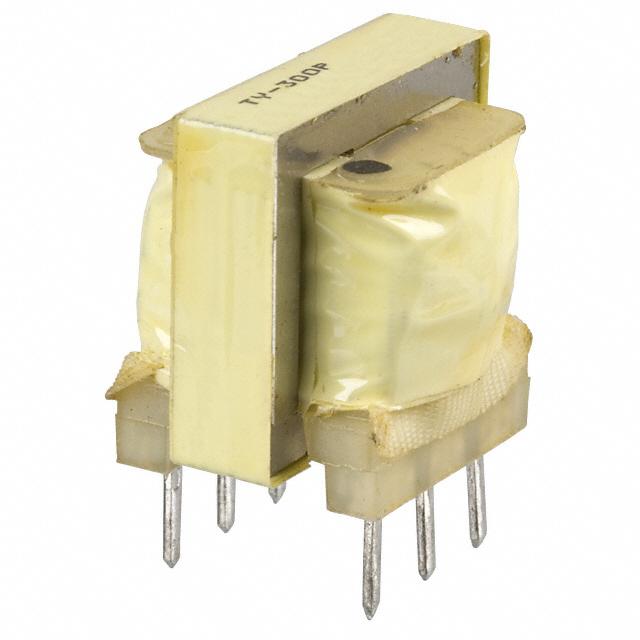

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TY-300P
Manufacturer/Brand:	Triad Magnetics
Product description	TRANSF 600 OHM 0MA DC TEL HYBRID
Datasheets:	TY-300P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15212 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15212 pcs

Reference Price (In US Dollars)

1 pcs: $2.29

10 pcs: $1.74

25 pcs: $1.694

50 pcs: $1.557

100 pcs: $1.465

250 pcs: $1.419

500 pcs: $1.374

1000 pcs: $1.328

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.29

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TY-300P

Part Number	TY-300P	Manufacturer	Triad Magnetics
Description	TRANSF 600 OHM 0MA DC TEL HYBRID	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15212 pcs	Data sheet	TY-300P.pdf
Weight	-	Voltage - Isolation	1500VAC
Turns Ratio - Primary:Secondary	1:2.48	Transformer Type	Data/Voice Coupling
Termination Style	PC Pin	Size / Dimension	0.812" L x 0.700" W (20.62mm x 17.78mm)
Series	TY	Return Loss	30dB Typ
Power Level	-45dB ~ 7dB	Packaging	Bulk
Other Names	10614 237-1123 TY300P	Operating Temperature	-
Mounting Type	Through Hole	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	0.8dB Typ
Impedance - Secondary (Ohms)	600/600	Impedance - Primary (Ohms)	600
Height - Seated (Max)	0.740" (18.80mm)	Frequency Response	-
Frequency Range	300Hz ~ 3.5kHz	DC Resistance (DCR) - Secondary	-
DC Resistance (DCR) - Primary	-	Approvals	-
