TY-145P

Triad Magnetics

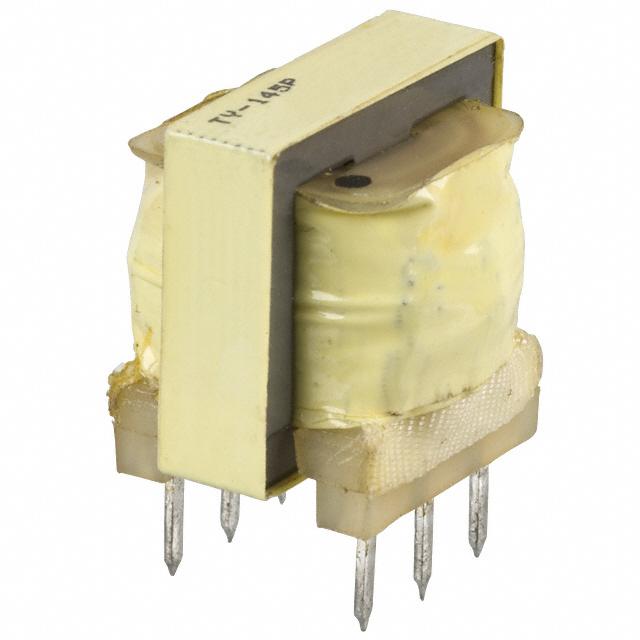

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TY-145P
Manufacturer/Brand:	Triad Magnetics
Product description	TRANSF 600 AUDIO CTAP/600 CTAP
Datasheets:	TY-145P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15877 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15877 pcs

Reference Price (In US Dollars)

1 pcs: $2.052

10 pcs: $1.56

25 pcs: $1.519

50 pcs: $1.396

100 pcs: $1.313

250 pcs: $1.272

500 pcs: $1.231

1000 pcs: $1.19

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.052

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TY-145P

Part Number	TY-145P	Manufacturer	Triad Magnetics
Description	TRANSF 600 AUDIO CTAP/600 CTAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15877 pcs	Data sheet	TY-145P.pdf
Weight	0.032 lb (14.51g)	Voltage - Isolation	1500V
Turns Ratio - Primary:Secondary	1:1	Transformer Type	Data/Voice Coupling
Termination Style	PC Pin	Size / Dimension	0.812" L x 0.700" W (20.62mm x 17.78mm)
Series	TY	Return Loss	26dB
Power Level	100mW	Packaging	Bulk
Other Names	10612 237-1121 TY145P	Operating Temperature	0°C ~ 105°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	52 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	1.5dB	Impedance - Secondary (Ohms)	600CT
Impedance - Primary (Ohms)	600CT	Height - Seated (Max)	0.740" (18.80mm)
Frequency Response	±2dB	Frequency Range	200Hz ~ 15kHz
DC Resistance (DCR) - Secondary	58 Ohm	DC Resistance (DCR) - Primary	44 Ohm
Approvals	-
