TY-250P

Triad Magnetics

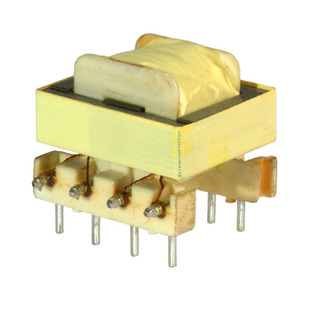

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TY-250P
Manufacturer/Brand:	Triad Magnetics
Product description	PC MOUNT AUDIO TRANSFORMER
Datasheets:	TY-250P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16480 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16480 pcs

Reference Price (In US Dollars)

1 pcs: $1.98

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.98

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TY-250P

Part Number	TY-250P	Manufacturer	Triad Magnetics
Description	PC MOUNT AUDIO TRANSFORMER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16480 pcs	Data sheet	TY-250P.pdf
Voltage - Isolation	1500VAC	Turns Ratio - Primary:Secondary	1:1, 2:1
Transformer Type	Impedance Matching	Termination Style	PC Pin
Size / Dimension	0.800" L x 0.770" W (20.32mm x 19.56mm)	Series	TY
Return Loss	-	Power Level	-
Operating Temperature	-40°C ~ 105°C	Mounting Type	Through Hole
Manufacturer Standard Lead Time	29 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	2.8dB Max @ 1kHz	Impedance - Secondary (Ohms)	1kCT
Impedance - Primary (Ohms)	1kCT	Height - Seated (Max)	0.700" (17.78mm)
Frequency Response	±1dB	Frequency Range	20Hz ~ 20kHz
DC Resistance (DCR) - Secondary	172 Ohm	DC Resistance (DCR) - Primary	172 Ohm
Approvals	-
