F-142XP

Triad Magnetics

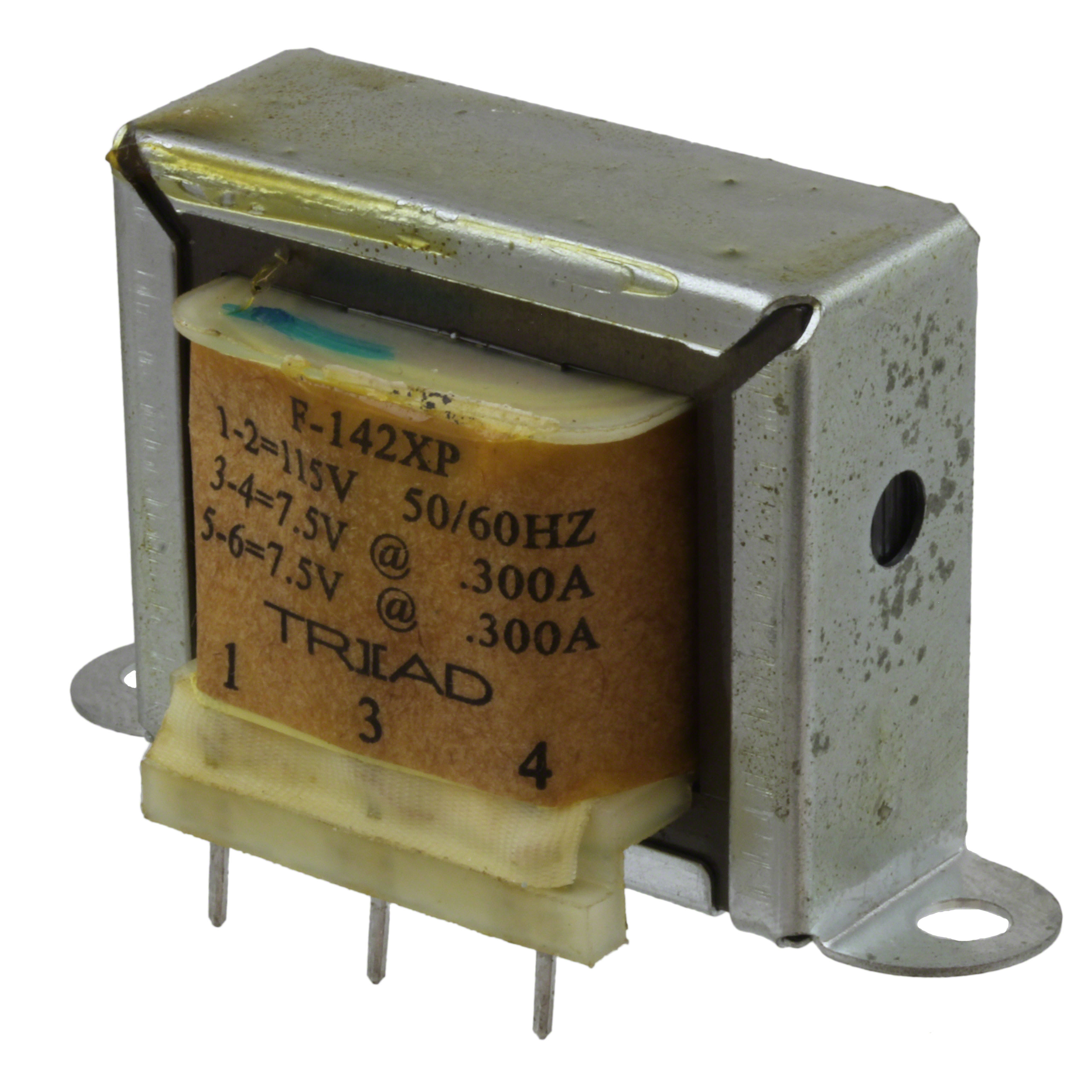

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F-142XP
Manufacturer/Brand:	Triad Magnetics
Product description	POWER TRANSFORMER PCB MOUNT
Datasheets:	F-142XP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11437 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11437 pcs

Reference Price (In US Dollars)

1 pcs: $3.284

10 pcs: $2.551

25 pcs: $2.482

50 pcs: $2.138

100 pcs: $2.041

250 pcs: $2.00

500 pcs: $1.965

1000 pcs: $1.931

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.284

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F-142XP

Part Number	F-142XP	Manufacturer	Triad Magnetics
Description	POWER TRANSFORMER PCB MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11437 pcs	Data sheet	F-142XP.pdf
Weight	0.469 lb (212.73g)	Voltage - Secondary (Full Load)	Parallel 7.5V, Series 15V
Voltage - Primary	115V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	Wire Leads
Size / Dimension	60.32mm L x 31.75mm W	Series	Single Primary
Secondary Winding(s)	Dual	Primary Winding(s)	Single
Power - Max	4.5 VA	Other Names	237-1912
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	36.50mm	Current - Output (Max)	Parallel 600mA, Series 300mA
Center Tap	No
