F-144XP

Triad Magnetics

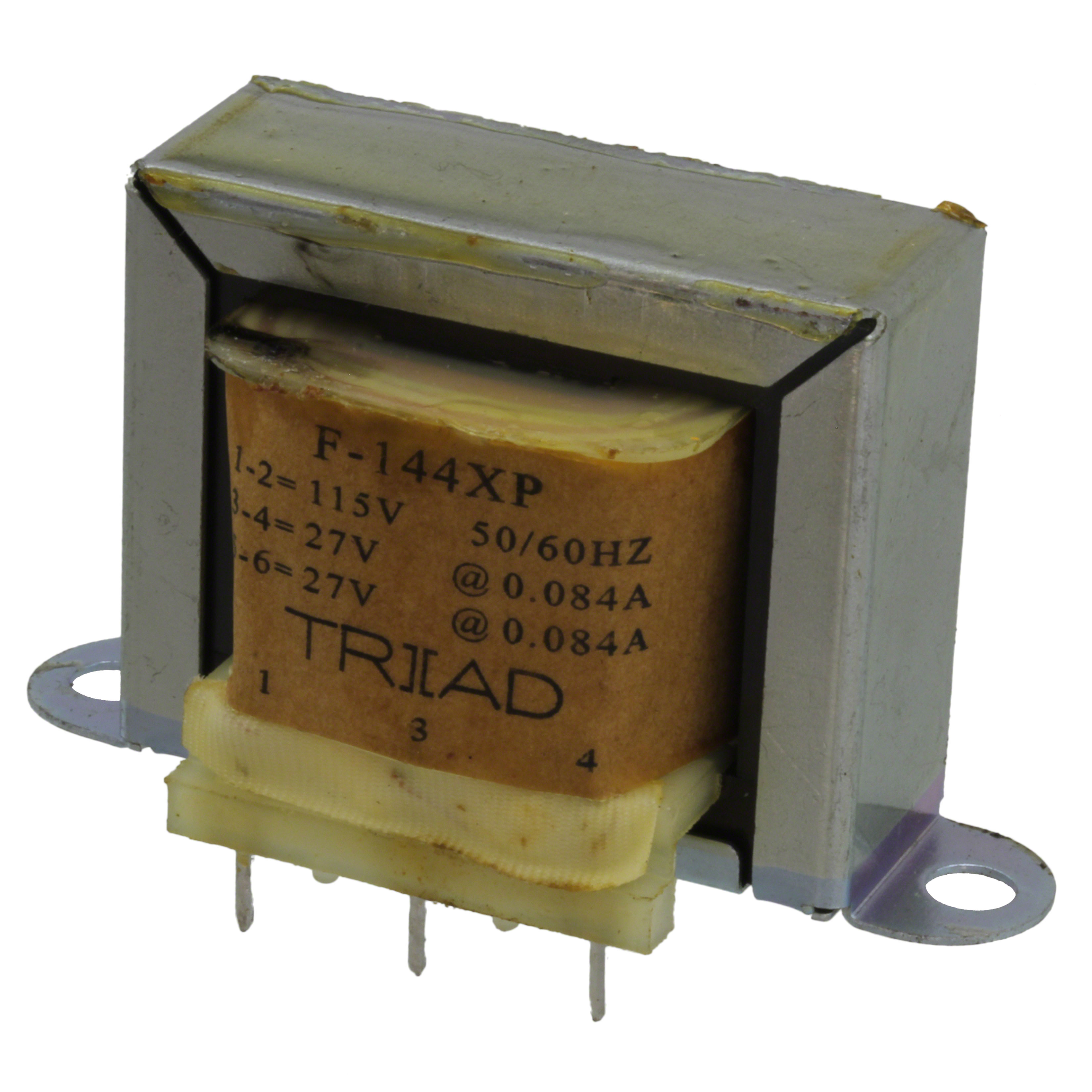

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F-144XP
Manufacturer/Brand:	Triad Magnetics
Product description	POWER TRANSFORMER PCB MOUNT
Datasheets:	F-144XP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12070 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12070 pcs

Reference Price (In US Dollars)

20 pcs: $2.551

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.551

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F-144XP

Part Number	F-144XP	Manufacturer	Triad Magnetics
Description	POWER TRANSFORMER PCB MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12070 pcs	Data sheet	F-144XP.pdf
Weight	0.469 lb (212.73g)	Voltage - Secondary (Full Load)	Parallel 27V, Series 54V
Voltage - Primary	115V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	PC Pin
Size / Dimension	60.32mm L x 31.75mm W	Series	Single Primary
Secondary Winding(s)	Dual	Primary Winding(s)	Single
Power - Max	4.5 VA	Other Names	237-1914
Mounting Type	User Defined	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	36.50mm	Current - Output (Max)	Parallel 168mA, Series 84mA
Center Tap	No
