F-136P

Triad Magnetics

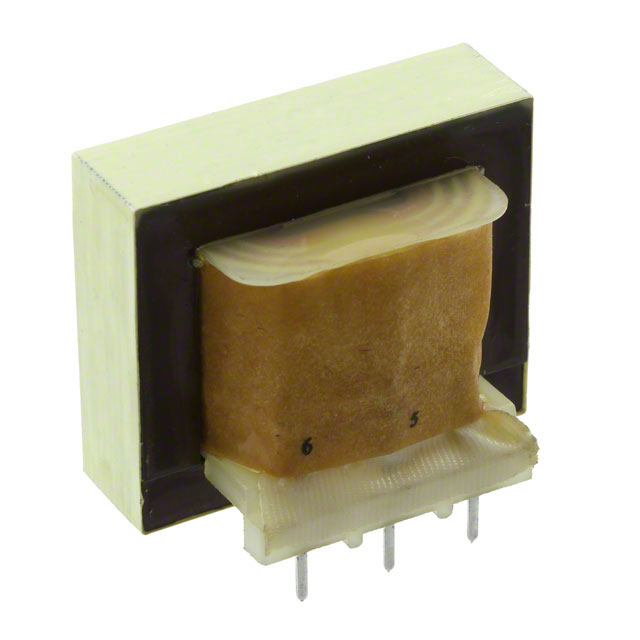

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F-136P
Manufacturer/Brand:	Triad Magnetics
Product description	PC MOUNT POWER TRANSFORMER
Datasheets:	F-136P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12528 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12528 pcs

Reference Price (In US Dollars)

1 pcs: $2.735

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.735

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F-136P

Part Number	F-136P	Manufacturer	Triad Magnetics
Description	PC MOUNT POWER TRANSFORMER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12528 pcs	Data sheet	F-136P.pdf
Weight	0.219 lb (99.34g)	Voltage - Secondary (Full Load)	Parallel 58V, Series 116V
Voltage - Primary	115V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	PC Pin
Size / Dimension	39.67mm L x 35.31mm W	Series	-
Secondary Winding(s)	Dual	Primary Winding(s)	Single
Power - Max	1.5 VA	Mounting Type	Through Hole
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	30.15mm	Current - Output (Max)	Parallel 26mA, Series 13mA
Center Tap	No
