Toshiba Semiconductor and Storage
| Part Number | TPN6R003NL,LQ | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N CH 30V 27A 8TSON-ADV | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 255513 pcs | Data sheet | TPN6R003NL,LQ.pdf |
| Vgs(th) (Max) @ Id | 2.3V @ 200µA | Vgs (Max) | ±20V |

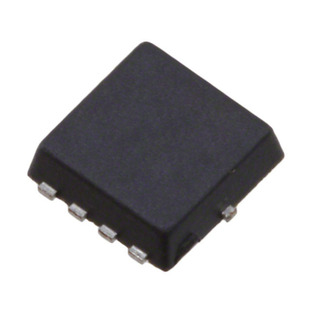

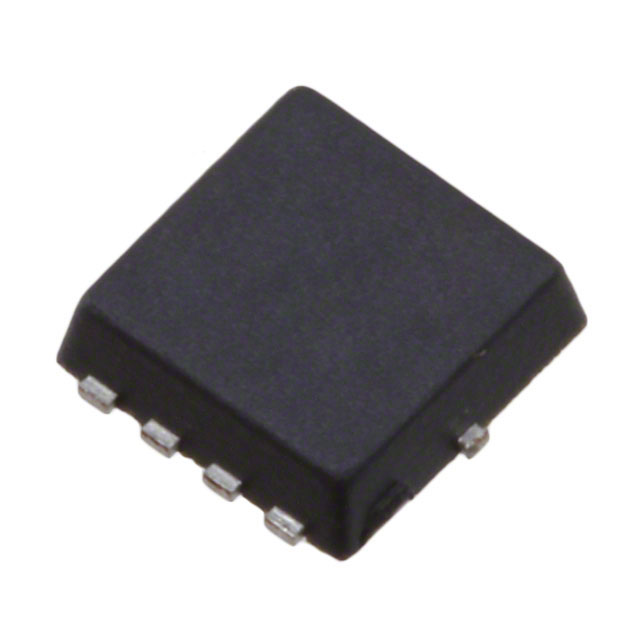

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-TSON Advance (3.3x3.3) |
| Series | U-MOSVIII-H | Rds On (Max) @ Id, Vgs | 6 mOhm @ 13.5A, 10V |
| Power Dissipation (Max) | 700mW (Ta), 32W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN | Other Names | TPN6R003NL,LQ(S TPN6R003NLLQTR |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1400pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 17nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 27A (Tc) 700mW (Ta), 32W (Tc) Surface Mount 8-TSON Advance (3.3x3.3) | Current - Continuous Drain (Id) @ 25°C | 27A (Tc) |
