TPN3R704PL,L1Q

Toshiba Semiconductor and Storage

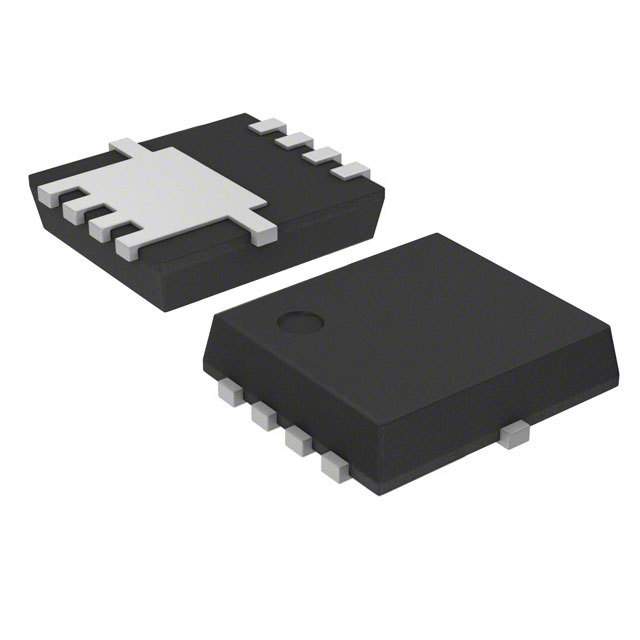

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TPN3R704PL,L1Q
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	MOSFET N-CH 40V 80A TSON
Datasheets:	TPN3R704PL,L1Q.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	410164 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 410164 pcs

Reference Price (In US Dollars)

5000 pcs: $0.091

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.091

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TPN3R704PL,L1Q

Part Number	TPN3R704PL,L1Q	Manufacturer	Toshiba Semiconductor and Storage
Description	MOSFET N-CH 40V 80A TSON	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	410164 pcs	Data sheet	TPN3R704PL,L1Q.pdf
Vgs(th) (Max) @ Id	2.4V @ 0.2mA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	8-TSON Advance (3.3x3.3)
Series	U-MOSIX-H	Rds On (Max) @ Id, Vgs	3.7 mOhm @ 40A, 10V
Power Dissipation (Max)	630mW (Ta), 86W (Tc)	Packaging	Tape & Reel (TR)
Package / Case	8-PowerVDFN	Other Names	TPN3R704PL,L1Q(M TPN3R704PLL1QTR
Operating Temperature	175°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	2500pF @ 20V	Gate Charge (Qg) (Max) @ Vgs	27nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	40V
Detailed Description	N-Channel 40V 80A (Tc) 630mW (Ta), 86W (Tc) Surface Mount 8-TSON Advance (3.3x3.3)	Current - Continuous Drain (Id) @ 25°C	80A (Tc)
