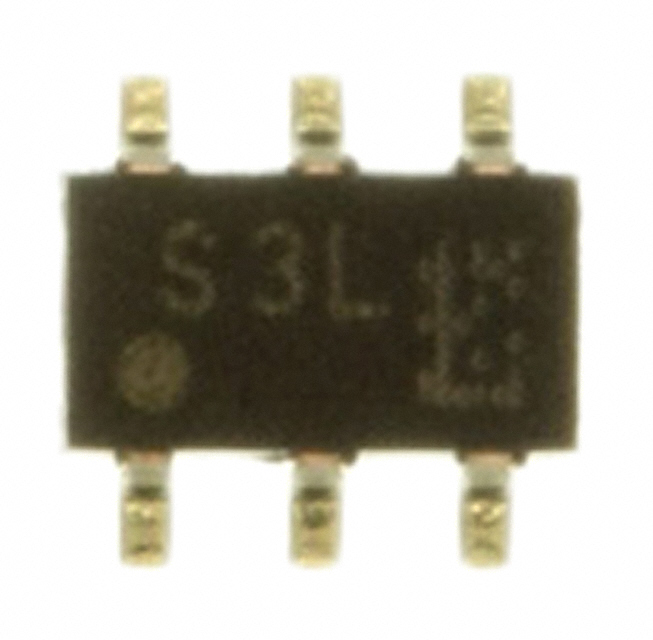

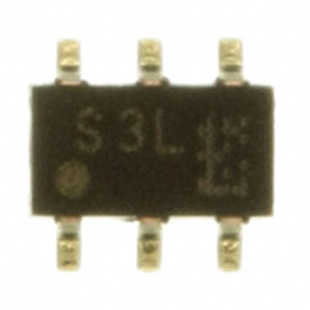

Toshiba Semiconductor and Storage
| Part Number | TPC6111(TE85L,F,M) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET P-CH 20V 5.5A VS-6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 409386 pcs | Data sheet | 1.TPC6111(TE85L,F,M).pdf2.TPC6111(TE85L,F,M).pdf |
| Vgs(th) (Max) @ Id | 1V @ 1mA | Vgs (Max) | ±8V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | VS-6 (2.9x2.8) |
| Series | U-MOSV | Rds On (Max) @ Id, Vgs | 40 mOhm @ 2.8A, 4.5V |
| Power Dissipation (Max) | 700mW (Ta) | Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | Other Names | TPC6111(TE85L,F) TPC6111(TE85LFM)TR TPC6111TE85LFM TPC6111TE85LFTR TPC6111TE85LFTR-ND |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 700pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 10nC @ 5V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | P-Channel 20V 5.5A (Ta) 700mW (Ta) Surface Mount VS-6 (2.9x2.8) | Current - Continuous Drain (Id) @ 25°C | 5.5A (Ta) |
