Toshiba Semiconductor and Storage

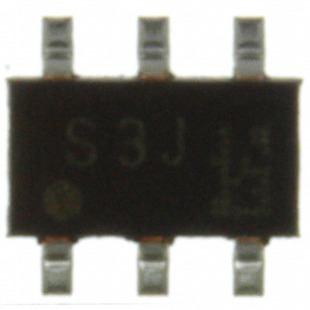

| Part Number | TPC6109-H(TE85L,FM | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET P-CH 30V 5A VS-6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6945 pcs | Data sheet | 1.TPC6109-H(TE85L,FM.pdf2.TPC6109-H(TE85L,FM.pdf |
| Vgs(th) (Max) @ Id | 1.2V @ 200µA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | VS-6 (2.9x2.8) |
| Series | U-MOSIII-H | Rds On (Max) @ Id, Vgs | 59 mOhm @ 2.5A, 10V |
| Power Dissipation (Max) | 700mW (Ta) | Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | Other Names | TPC6109-H(TE85L,F) TPC6109-H(TE85LFMTR TPC6109-HTE85LFTR TPC6109-HTE85LFTR-ND |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 490pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 12.3nC @ 10V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | P-Channel 30V 5A (Ta) 700mW (Ta) Surface Mount VS-6 (2.9x2.8) | Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
