Toshiba Semiconductor and Storage

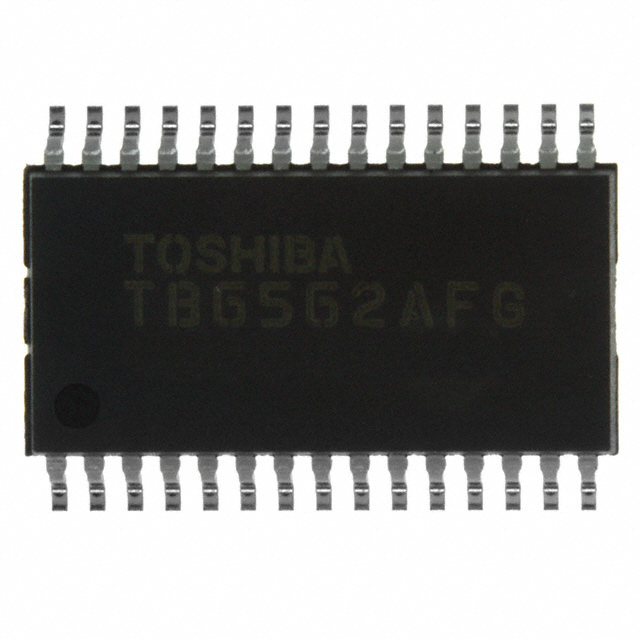

| Part Number | TB6562AFG,8,EL | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | IC MOTOR DRIVER PAR 30SSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50340 pcs | Data sheet | TB6562AFG,8,EL.pdf |
| Voltage - Supply | 10 V ~ 34 V | Voltage - Load | 10 V ~ 34 V |
| Technology | DMOS | Supplier Device Package | 30-SSOP |
| Step Resolution | 1, 1/2, 1/4 | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 30-BSOP (0.295", 7.50mm Width) |
| Output Configuration | Half Bridge (4) | Other Names | TB6562AFG (O,8,EL) TB6562AFG(EL) TB6562AFG(O,8,EL) TB6562AFG(O,EL) TB6562AFG(O,EL)-ND TB6562AFG(O8EL)TR TB6562AFG(O8EL)TR-ND TB6562AFG(OEL) TB6562AFG(OEL)-ND TB6562AFG(OEL)TR TB6562AFG(OEL)TR-ND TB6562AFG8ELTR TB6562AFGO8EL TB6562AFGOELTR TB6562AFGOELTR-ND TB6562AFGTR TB6562AFGTR-ND |
| Operating Temperature | -20°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Motor Type - Stepper | Bipolar | Motor Type - AC, DC | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | Parallel |
| Function | Driver - Fully Integrated, Control and Power Stage | Detailed Description | Bipolar Motor Driver DMOS Parallel 30-SSOP |
| Current - Output | 1.5A | Applications | General Purpose |
