TB6561FG,8,EL

Toshiba Semiconductor and Storage

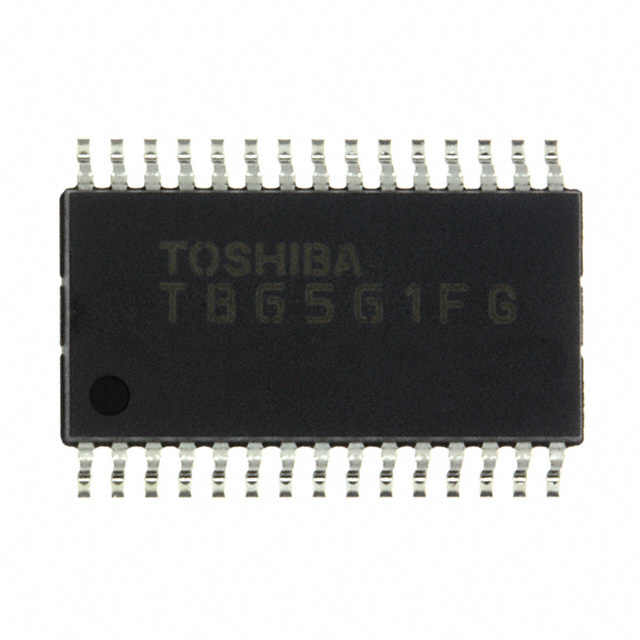

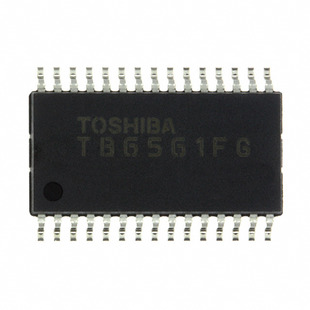

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TB6561FG,8,EL
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	IC MOTOR DRIVER PAR 30SSOP
Datasheets:	TB6561FG,8,EL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	48581 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 48581 pcs

Reference Price (In US Dollars)

1000 pcs: $0.663

2000 pcs: $0.629

5000 pcs: $0.606

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.663

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TB6561FG,8,EL

Part Number	TB6561FG,8,EL	Manufacturer	Toshiba Semiconductor and Storage
Description	IC MOTOR DRIVER PAR 30SSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	48581 pcs	Data sheet	TB6561FG,8,EL.pdf
Voltage - Supply	10 V ~ 36 V	Voltage - Load	10 V ~ 36 V
Technology	Bi-CMOS	Supplier Device Package	30-SSOP
Step Resolution	-	Series	-
Packaging	Tape & Reel (TR)	Package / Case	30-BSOP (0.295", 7.50mm Width)
Output Configuration	Half Bridge (4)	Other Names	TB6561FG (O,8,EL) TB6561FG(EL) TB6561FG(O,8,EL) TB6561FG(O,EL) TB6561FG(O8EL)TR TB6561FG(O8EL)TR-ND TB6561FG8ELTR TB6561FGO8EL TB6561FGTR TB6561FGTR-ND
Operating Temperature	-20°C ~ 85°C (TA)	Mounting Type	Surface Mount
Motor Type - Stepper	-	Motor Type - AC, DC	Brushed DC
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	PWM
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Motor Driver Bi-CMOS PWM 30-SSOP
Current - Output	1.5A	Base Part Number	TB6561
Applications	General Purpose
