Toshiba Semiconductor and Storage

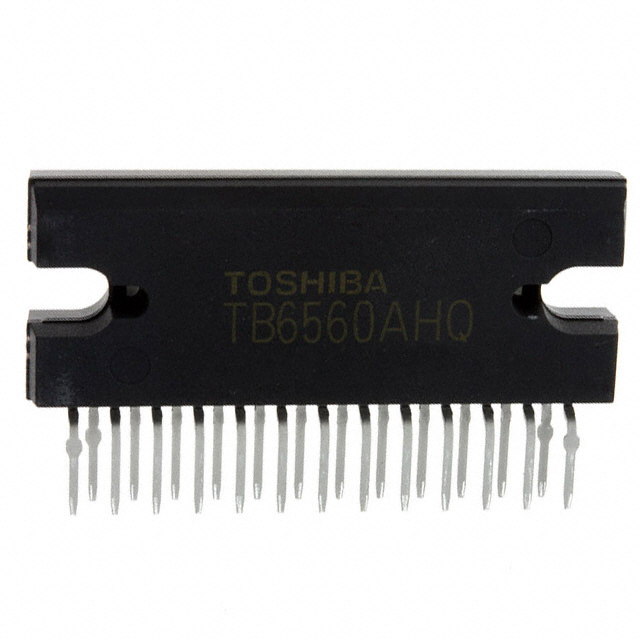

| Part Number | TB6560AHQ,8 | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | IC MOTOR DRIVER PAR 25HZIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13224 pcs | Data sheet | TB6560AHQ,8.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V | Voltage - Load | 4.5 V ~ 34 V |
| Technology | Power MOSFET | Supplier Device Package | 25-HZIP |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 | Series | - |
| Packaging | Tray | Package / Case | 25-SIP Formed Leads |
| Output Configuration | Half Bridge (4) | Other Names | TB6560AHQ (O) TB6560AHQ(O) TB6560AHQ(O,8) TB6560AHQ(O8) TB6560AHQ(O8)-ND TB6560AHQ8 TB6560AHQO TB6560AHQO-ND TB6560AHQO8 TB6560HQ TB6560HQ(O) TB6560HQ-ND TB6560HQO-ND |
| Operating Temperature | -30°C ~ 85°C (TA) | Mounting Type | Through Hole |
| Motor Type - Stepper | Bipolar | Motor Type - AC, DC | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | Parallel |
| Function | Driver - Fully Integrated, Control and Power Stage | Detailed Description | Bipolar Motor Driver Power MOSFET Parallel 25-HZIP |
| Current - Output | 3A | Base Part Number | TB6560A |
| Applications | General Purpose |
