Tamura

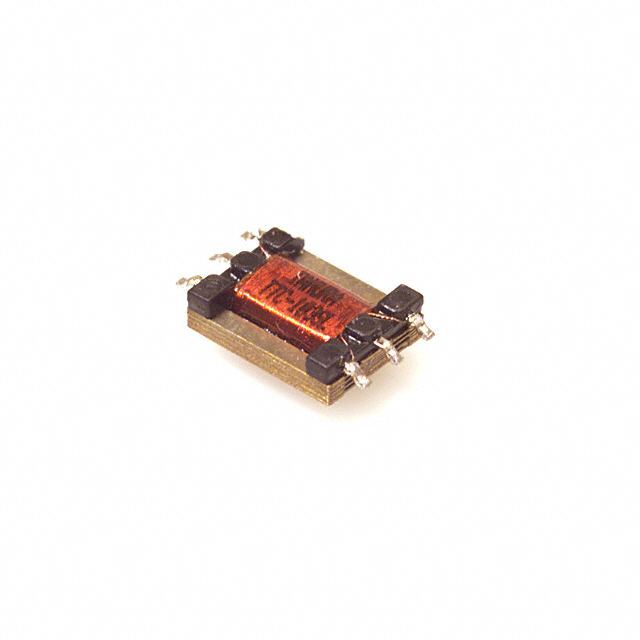

| Part Number | TTC-103SL | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSFORMER PCMCIA MODEM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3144 pcs | Data sheet | TTC-103SL.pdf |
| Weight | - | Voltage - Isolation | 1000VRMS @ 1 Minute |
| Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | Data/Voice Coupling |
| Termination Style | Gull Wing | Size / Dimension | 0.330" L x 0.402" W (8.38mm x 10.20mm) |
| Series | TTC | Return Loss | 25dB Min @ 300Hz ~ 3.5kHz |
| Power Level | 10mW | Packaging | Bulk |
| Other Names | MT4121 TSL 103 TSL103 TSL103(BOX) TSL103(BULK) |
Operating Temperature | - |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 2.7dB @ 1kHz |
| Impedance - Secondary (Ohms) | 346 | Impedance - Primary (Ohms) | 600 |
| Height - Seated (Max) | 0.164" (4.16mm) | Frequency Response | -0.35dB ~ 0.15dB |
| Frequency Range | 300Hz ~ 3.5kHz | DC Resistance (DCR) - Secondary | 150 Ohm |
| DC Resistance (DCR) - Primary | 127 Ohm | Approvals | CSA-C22.2 No. 950-M89, UL1459, UL1950 |
