Tamura

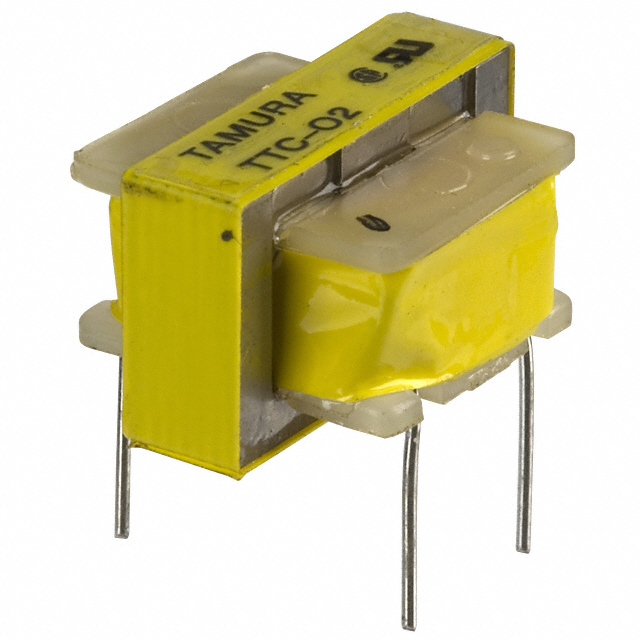

| Part Number | TTC-02 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSF TELE FCC68 600:600 0 MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14790 pcs | Data sheet | TTC-02.pdf |
| Weight | - | Voltage - Isolation | 1500VRMS @ 1 Minute |
| Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | Data/Voice Coupling |
| Termination Style | PC Pin | Size / Dimension | 0.799" L x 0.650" W (20.30mm x 16.50mm) |
| Series | TTC | Return Loss | - |
| Power Level | -45dB ~ 7dB | Packaging | Bulk |
| Other Names | MT11101 MT4133 TTC02 |
Operating Temperature | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 1.5dB Max @ 1kHz | Impedance - Secondary (Ohms) | 600 |
| Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.488" (12.40mm) |
| Frequency Response | ±0.5dB | Frequency Range | 300Hz ~ 3.5kHz |
| DC Resistance (DCR) - Secondary | 90 Ohm | DC Resistance (DCR) - Primary | 72 Ohm |
| Approvals | CSA-C22.2 No. 66-M1988, UL1459 |
