Tamura

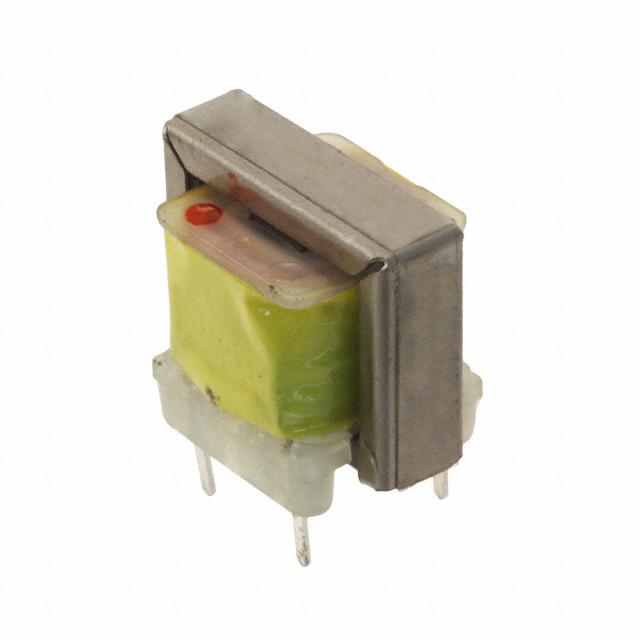

| Part Number | TTC-105-1 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSF TEL COUP 600:600CT 90MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15422 pcs | Data sheet | TTC-105-1.pdf |
| Weight | - | Voltage - Isolation | 1500VRMS @ 1 Minute |
| Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | Data/Voice Coupling |
| Termination Style | PC Pin | Size / Dimension | 0.839" L x 0.630" W (21.30mm x 16.00mm) |
| Series | TTC | Return Loss | - |
| Power Level | -45dB ~ 10dB | Packaging | Bulk |
| Other Names | MT11103 MT4135 T2114 TTC1051 |
Operating Temperature | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz | Impedance - Secondary (Ohms) | 600CT |
| Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.748" (19.00mm) |
| Frequency Response | -1dB ~ 0.7dB | Frequency Range | 660Hz ~ 3.5kHz |
| DC Resistance (DCR) - Secondary | 117 Ohm | DC Resistance (DCR) - Primary | 71 Ohm |
| Approvals | CSA-C22.2 No. 66-M1988, UL1459 |
