Sunon

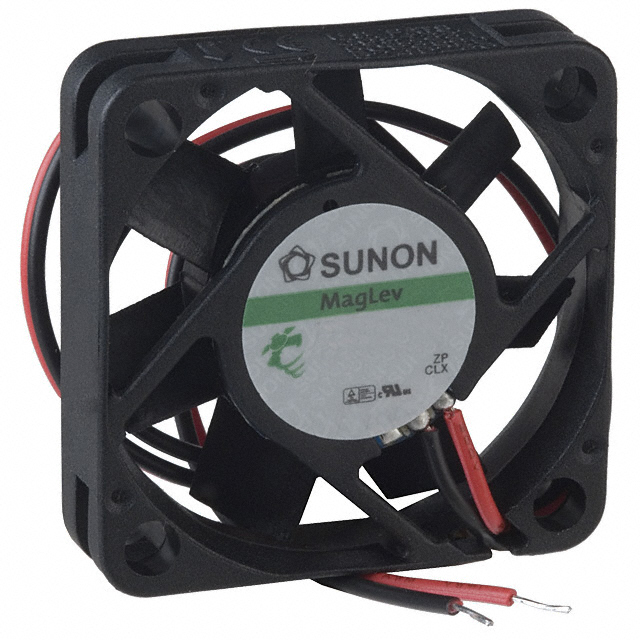

| Part Number | KDE1204PFV1.11.MS.A.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 40X10MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5455 pcs | Data sheet | 1.KDE1204PFV1.11.MS.A.GN.pdf2.KDE1204PFV1.11.MS.A.GN.pdf3.KDE1204PFV1.11.MS.A.GN.pdf |
| Width | 10.00mm | Weight | 0.037 lb (16.78g) |
| Voltage Range | 4.5 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.190 in H2O (47.3 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | MagLev® KDE |
| RPM | 7000 RPM | Power (Watts) | 1.10W |
| Other Names | 259-1350 E1240PFU14A-GRJ KDE1204PFV1 11.MS.A.GN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 32.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.090A | Bearing Type | Vapo-Bearing™ |
| Approvals | CE, CUR, TUV, UL | Air Flow | 8.0 CFM (0.224m³/min) |
