Sunon

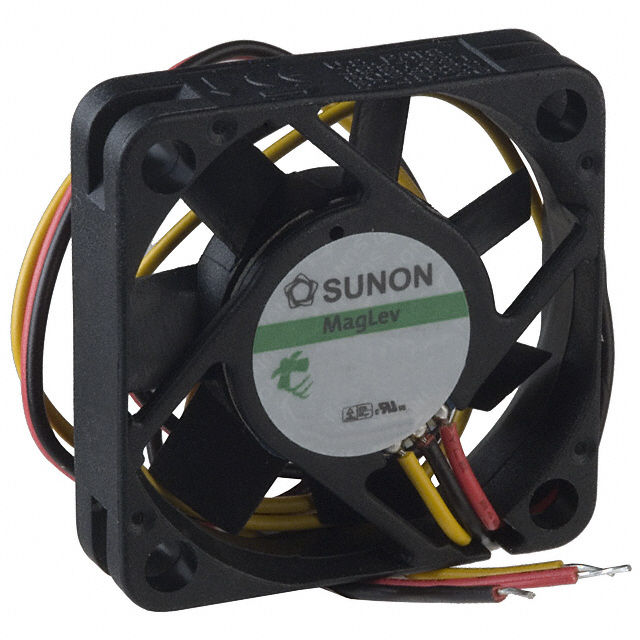

| Part Number | KDE0504PFV1.11.MS.AF.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 40X10MM VAPO 5VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3960 pcs | Data sheet | 1.KDE0504PFV1.11.MS.AF.GN.pdf2.KDE0504PFV1.11.MS.AF.GN.pdf3.KDE0504PFV1.11.MS.AF.GN.pdf |
| Width | 10.00mm | Weight | 0.037 lb (16.78g) |
| Voltage Range | 4 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.190 in H2O (47.3 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | MagLev® KDE |
| RPM | 7000 RPM | Power (Watts) | 1.20W |
| Other Names | 259-1341 E0540PFU14AFVRG KDE0504PFV1 11.MS.AF.GN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 32.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.240A | Bearing Type | Vapo-Bearing™ |
| Approvals | CE, CUR, TUV, UL | Air Flow | 8.0 CFM (0.224m³/min) |
