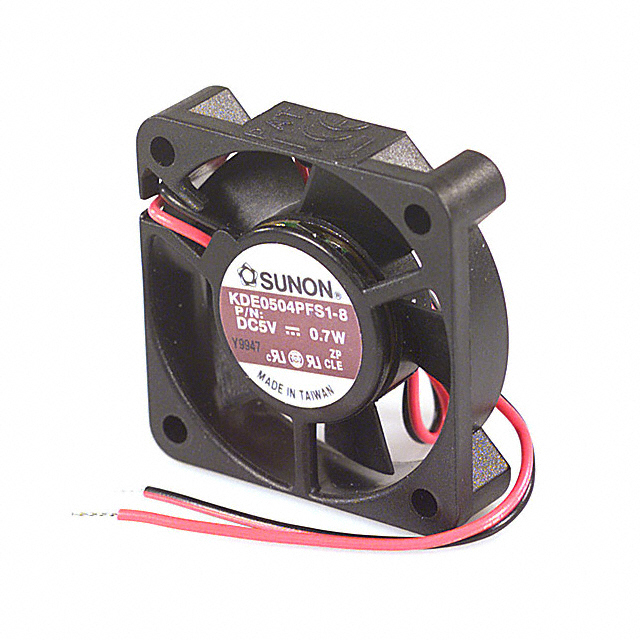

Sunon
| Part Number | KDE0504PFS1-8 | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 40X10.5MM 5VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3492 pcs | Data sheet | 1.KDE0504PFS1-8.pdf2.KDE0504PFS1-8.pdf |
| Width | 10.50mm | Weight | 0.044 lb (19.96g) |
| Voltage Range | 4 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.170 in H2O (42.3 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | KDE |
| RPM | 7000 RPM | Power (Watts) | 700mW |
| Other Names | 259-1132 E0540PFS18---RK KDE0504PFS18 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 25.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.150A | Bearing Type | Sleeve |
| Approvals | cUR, UL | Air Flow | 6.6 CFM (0.185m³/min) |
