Sunon

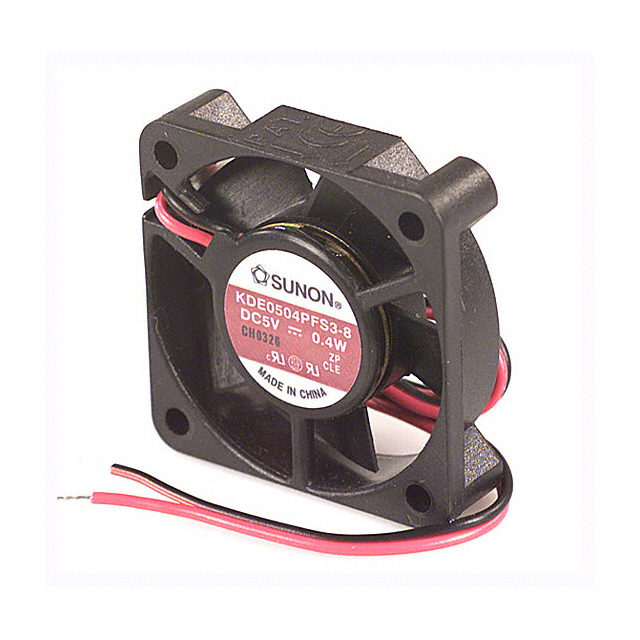

| Part Number | KDE0504PFS3-8 | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 40X10.5MM 5VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6916 pcs | Data sheet | 1.KDE0504PFS3-8.pdf2.KDE0504PFS3-8.pdf |
| Width | 10.50mm | Weight | 0.044 lb (19.96g) |
| Voltage Range | 4 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.090 in H2O (22.4 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | KDE |
| RPM | 4500 RPM | Power (Watts) | 400mW |
| Other Names | 259-1134 E0540PFS38---RK KDE0504PFS38 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 22.8 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.080A | Bearing Type | Sleeve |
| Approvals | cUR, UL | Air Flow | 4.5 CFM (0.126m³/min) |
