ZF5S-15-01-T-WT

Samtec, Inc.Samtec, Inc.

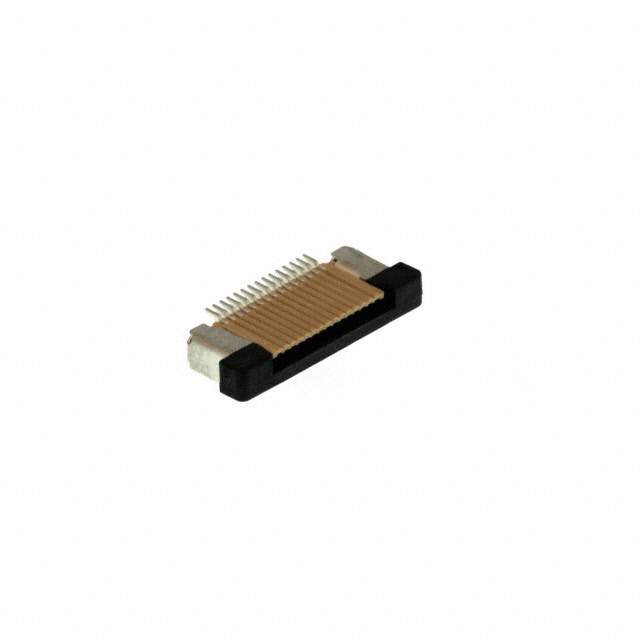

ZF5S-15-01-T-WT Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ZF5S-15-01-T-WT
Manufacturer/Brand: Samtec, Inc.
Product description ZERO INSERTION FORCE .5MM ASSY
Datasheets: 1.ZF5S-15-01-T-WT.pdf2.ZF5S-15-01-T-WT.pdf3.ZF5S-15-01-T-WT.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 56122 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 56122 pcs
Reference Price (In US Dollars)
1 pcs
$0.636
10 pcs
$0.576
43 pcs
$0.541
86 pcs
$0.517
129 pcs
$0.494
258 pcs
$0.447
516 pcs
$0.412
1032 pcs
$0.353
2537 pcs
$0.329
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.636

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ZF5S-15-01-T-WT

Part Number ZF5S-15-01-T-WT Manufacturer Samtec, Inc.
Description ZERO INSERTION FORCE .5MM ASSY Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 56122 pcs Data sheet 1.ZF5S-15-01-T-WT.pdf2.ZF5S-15-01-T-WT.pdf3.ZF5S-15-01-T-WT.pdf
Voltage Rating - Termination Solder
Series ZF5S Pitch 0.020" (0.50mm)
Packaging Tube Other Names SAM10388
Operating Temperature -55°C ~ 105°C Number of Positions 15
Mounting Type Surface Mount, Right Angle Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mating Cycles - Material Flammability Rating -
Locking Feature Slide Lock Lead Free Status / RoHS Status Lead free / RoHS Compliant
Housing Material Liquid Crystal Polymer (LCP) Housing Color Natural
Height Above Board 0.079" (2.00mm) Flat Flex Type FFC
Features Solder Retention, Zero Insertion Force (ZIF) FFC, FCB Thickness 0.30mm
Detailed Description 15 Position FFC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle Current Rating 1.8A per Contact
Contact Material Phosphor Bronze Contact Finish Thickness -
Contact Finish Tin Connector/Contact Type Contacts, Bottom
Cable End Type Straight Actuator Material Liquid Crystal Polymer (LCP)
Actuator Color Black
