ZF5S-20-01-T-WT

Samtec, Inc.Samtec, Inc.

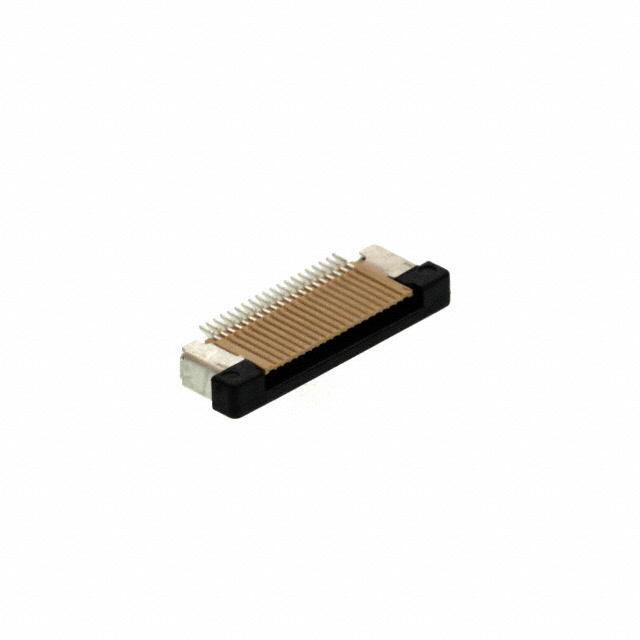

ZF5S-20-01-T-WT Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ZF5S-20-01-T-WT
Manufacturer/Brand: Samtec, Inc.
Product description ZERO INSERTION FORCE .5MM ASSY
Datasheets: 1.ZF5S-20-01-T-WT.pdf2.ZF5S-20-01-T-WT.pdf3.ZF5S-20-01-T-WT.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 45098 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 45098 pcs
Reference Price (In US Dollars)
1 pcs
$0.683
10 pcs
$0.62
36 pcs
$0.582
72 pcs
$0.556
108 pcs
$0.531
252 pcs
$0.48
504 pcs
$0.443
1008 pcs
$0.379
2520 pcs
$0.354
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.683

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ZF5S-20-01-T-WT

Part Number ZF5S-20-01-T-WT Manufacturer Samtec, Inc.
Description ZERO INSERTION FORCE .5MM ASSY Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 45098 pcs Data sheet 1.ZF5S-20-01-T-WT.pdf2.ZF5S-20-01-T-WT.pdf3.ZF5S-20-01-T-WT.pdf
Voltage Rating - Termination Solder
Series ZF5S Pitch 0.020" (0.50mm)
Packaging Tube Other Names SAM10389
Operating Temperature -55°C ~ 105°C Number of Positions 20
Mounting Type Surface Mount, Right Angle Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mating Cycles - Material Flammability Rating -
Manufacturer Standard Lead Time 3 Weeks Locking Feature Slide Lock
Lead Free Status / RoHS Status Lead free / RoHS Compliant Housing Material Liquid Crystal Polymer (LCP)
Housing Color Natural Height Above Board 0.079" (2.00mm)
Flat Flex Type FFC Features Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness 0.30mm Detailed Description 20 Position FFC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating 1.8A per Contact Contact Material Phosphor Bronze
Contact Finish Thickness - Contact Finish Tin
Connector/Contact Type Contacts, Bottom Cable End Type Straight
Actuator Material Liquid Crystal Polymer (LCP) Actuator Color Black
