ZF5S-10-01-T-WT

Samtec, Inc.Samtec, Inc.
ZF5S-10-01-T-WT Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ZF5S-10-01-T-WT
Manufacturer/Brand: Samtec, Inc.
Product description ZERO INSERTION FORCE .5MM ASSY
Datasheets: 1.ZF5S-10-01-T-WT.pdf2.ZF5S-10-01-T-WT.pdf3.ZF5S-10-01-T-WT.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 59298 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 59298 pcs
Reference Price (In US Dollars)
1 pcs
$0.585
10 pcs
$0.531
25 pcs
$0.499
54 pcs
$0.477
108 pcs
$0.455
270 pcs
$0.412
540 pcs
$0.379
1026 pcs
$0.325
2538 pcs
$0.303
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.585

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ZF5S-10-01-T-WT

Part Number ZF5S-10-01-T-WT Manufacturer Samtec, Inc.
Description ZERO INSERTION FORCE .5MM ASSY Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 59298 pcs Data sheet 1.ZF5S-10-01-T-WT.pdf2.ZF5S-10-01-T-WT.pdf3.ZF5S-10-01-T-WT.pdf
Voltage Rating - Termination Solder
Series ZF5S Pitch 0.020" (0.50mm)
Packaging Tube Other Names SAM10387
Operating Temperature -55°C ~ 105°C Number of Positions 10
Mounting Type Surface Mount, Right Angle Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mating Cycles - Material Flammability Rating -
Manufacturer Standard Lead Time 3 Weeks Locking Feature Slide Lock
Lead Free Status / RoHS Status Lead free / RoHS Compliant Housing Material Liquid Crystal Polymer (LCP)
Housing Color Natural Height Above Board 0.079" (2.00mm)
Flat Flex Type FFC Features Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness 0.30mm Detailed Description 10 Position FFC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating 1.8A per Contact Contact Material Phosphor Bronze
Contact Finish Thickness - Contact Finish Tin
Connector/Contact Type Contacts, Bottom Cable End Type Straight
Actuator Material Liquid Crystal Polymer (LCP) Actuator Color Black

Shipment

★ FREE SHIPPING VIA DHL/FEDEX/UPS IF ORDER AMOUNT OVER 1,000 USD.
(ONLY FOR Integrated Circuits, Circuit Protection, RF/IF and RFID, Optoelectronics, Sensors, Transducers, Transformers, Isolators, Switches, Relays)

FEDEX www.FedEx.com From $35.00 basic shipping fee depend on zone and country.
DHL www.DHL.com From $35.00 basic shipping fee depend on zone and country.
UPS www.UPS.com From $35.00 basic shipping fee depend on zone and country.
TNT www.TNT.com From $35.00 basic shipping fee depend on zone and country.

★ Delivery time will need 2-4 Days to most of country all over the world by DHL/UPS/FEDEX/TNT.

Please feel free to contact us if you have any questions about the shipment. E-mail us [email protected]
FedexDHLUPSTNT

AFTER-SALES GUARANTEE

  1. Each product from Infinite-Electronics.net has been given a warranty period of 1 YEAR .During this period , we could provide free technical maintenance if there are any problems about our products.
  2. If you find quality problems about our products after receiving them, you could test them and apply for unconditional refund if it can be proved.
  3. If the products are defective or they don't working, you can return to us within 1 YEAR, all transportation and customs charges of the goods are borne by us.

Related Tags

Related Products

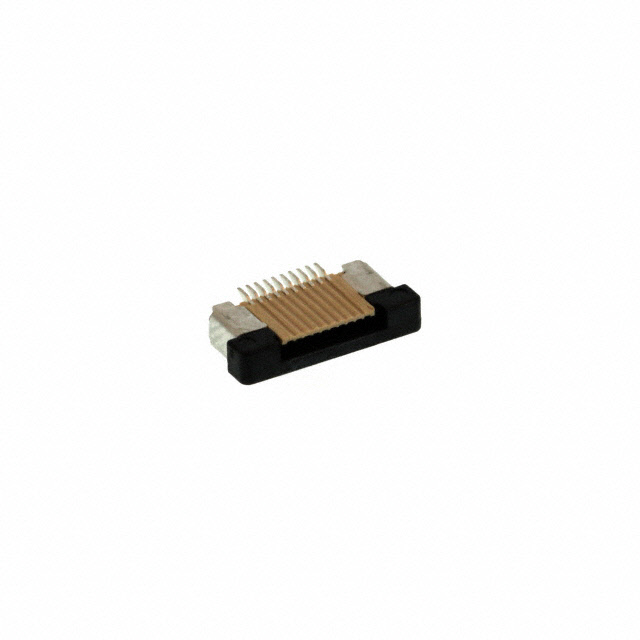

ZF5S-10-01-T-WT-K-TR
