PA2753NL

Pulse Electronics Corporation

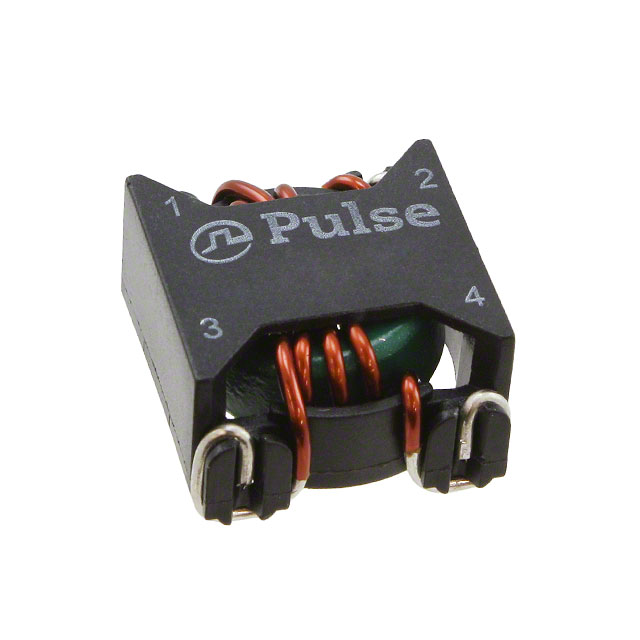

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA2753NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	COMMON MODE CHOKE 12.5A 2LN SMD
Datasheets:	PA2753NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36671 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 36671 pcs

Reference Price (In US Dollars)

1 pcs: $0.798

30 pcs: $0.676

120 pcs: $0.516

510 pcs: $0.418

1020 pcs: $0.381

2520 pcs: $0.368

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.798

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA2753NL

Part Number	PA2753NL	Manufacturer	Pulse Electronics Corporation
Description	COMMON MODE CHOKE 12.5A 2LN SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36671 pcs	Data sheet	PA2753NL.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.670" L x 0.770" W (17.02mm x 19.56mm)	Series	-
Ratings	-	Packaging	Tube
Package / Case	Horizontal, 4 PC Pad	Other Names	553-2191 PA2753NL-ND
Operating Temperature	-40°C ~ 130°C	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	17 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	0.390" (9.91mm)	Filter Type	-
Features	-	Detailed Description	2 Line Common Mode Choke Surface Mount 12.5A DCR 3 mOhm
DC Resistance (DCR) (Max)	3 mOhm	Current Rating (Max)	12.5A
Approvals	-
