Pulse Electronics Corporation

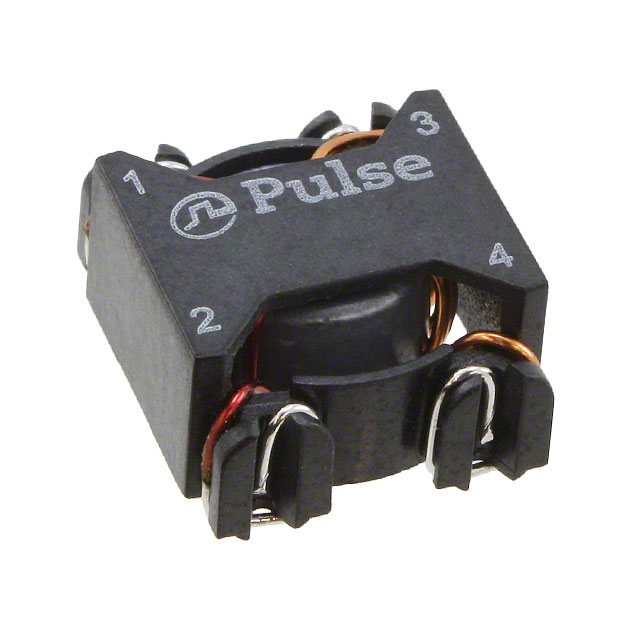

| Part Number | PA2749NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | COMMON MODE CHOKE 3.8A 2LN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48885 pcs | Data sheet | PA2749NL.pdf |
| Voltage Rating - DC | - | Voltage Rating - AC | - |
| Size / Dimension | 0.560" L x 0.646" W (14.22mm x 16.40mm) | Series | - |
| Ratings | - | Packaging | Tube |
| Package / Case | Horizontal, 4 PC Pad | Other Names | 553-2187 553-2187-5 553-2187-ND PA2749NL-ND |
| Operating Temperature | -40°C ~ 130°C | Number of Lines | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.350" (8.90mm) | Filter Type | - |
| Features | - | Detailed Description | 2 Line Common Mode Choke Surface Mount 3.8A DCR 17.1 mOhm |
| DC Resistance (DCR) (Max) | 17.1 mOhm | Current Rating (Max) | 3.8A |
| Approvals | - |
