PA2756NL

Pulse Electronics Corporation

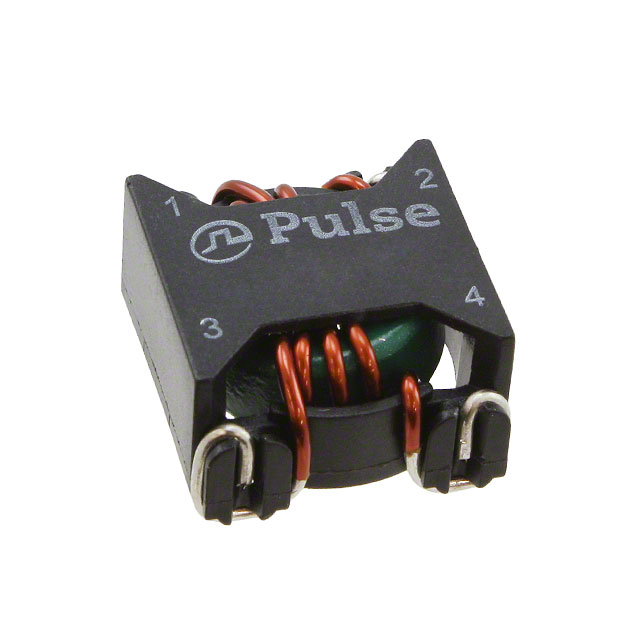

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA2756NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	COMMON MODE CHOKE 8A 2LN SMD
Datasheets:	PA2756NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	39170 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 39170 pcs

Reference Price (In US Dollars)

1 pcs: $0.809

75 pcs: $0.586

150 pcs: $0.523

525 pcs: $0.424

1050 pcs: $0.386

2550 pcs: $0.374

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.809

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA2756NL

Part Number	PA2756NL	Manufacturer	Pulse Electronics Corporation
Description	COMMON MODE CHOKE 8A 2LN SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	39170 pcs	Data sheet	PA2756NL.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.670" L x 0.770" W (17.02mm x 19.56mm)	Series	-
Ratings	-	Packaging	Tube
Package / Case	Horizontal, 4 PC Pad	Other Names	553-2124 553-2124-ND 553-2194 PA2756NL-ND
Operating Temperature	-40°C ~ 130°C	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	0.390" (9.91mm)	Filter Type	Power Line
Features	-	Detailed Description	2 Line Common Mode Choke Surface Mount 8A DCR 7.7 mOhm
DC Resistance (DCR) (Max)	7.7 mOhm	Current Rating (Max)	8A
Approvals	-
