Omron

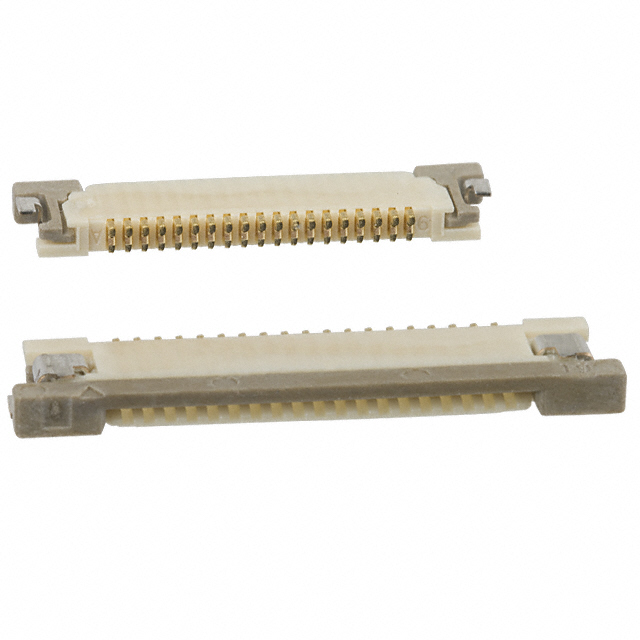

| Part Number | XF2L-1935-1A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC BOTTOM 19POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6016 pcs | Data sheet | XF2L-1935-1A.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | XF2L | Pitch | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) | Other Names | OR760TR XF2L-1935-1A BY OMZ XF2L19351ABYOMZ |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 19 |
| Mounting Type | Surface Mount, Right Angle | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Natural | Height Above Board | 0.047" (1.20mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 19 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Copper Alloy |
| Contact Finish Thickness | 5.90µin (0.150µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Straight |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free | Actuator Color | Brown |
