Omron

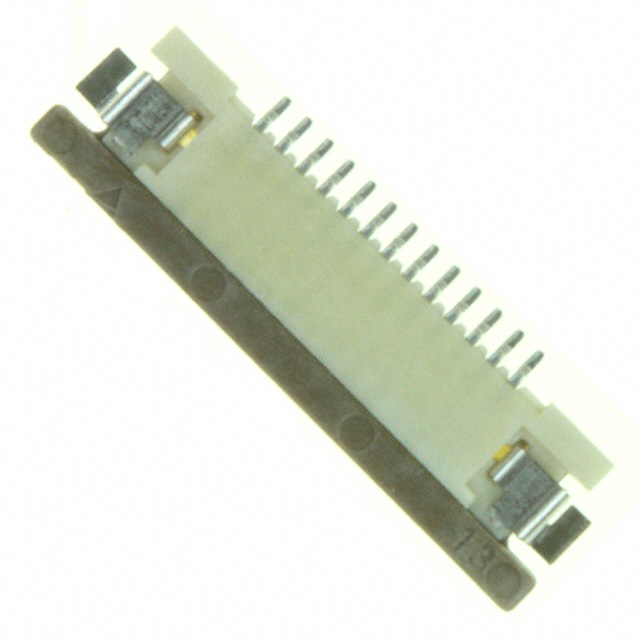

| Part Number | XF2L-1335-1A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC BOTTOM 13POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74937 pcs | Data sheet | XF2L-1335-1A.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | XF2L | Pitch | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | OR757CT |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 13 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | Natural |
| Height Above Board | 0.047" (1.20mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 13 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color | Brown |
