XF2L-1825-1A

Omron

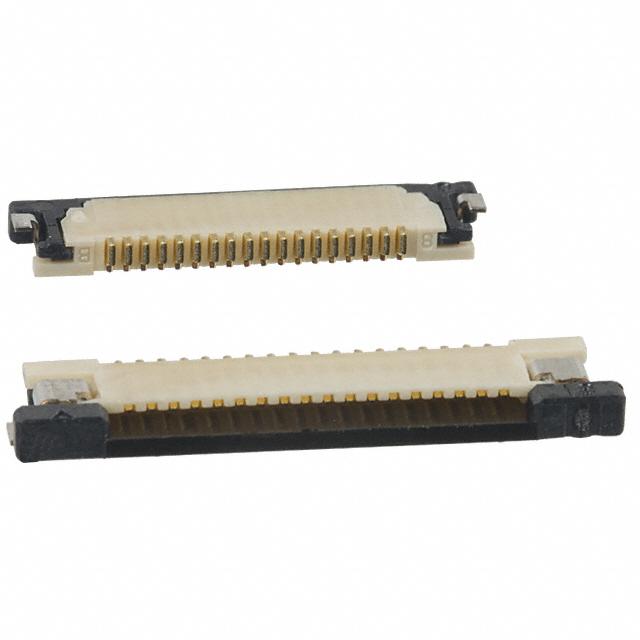

Image may be representation. See specifications for product details.

Product Overview

Part Number:	XF2L-1825-1A
Manufacturer/Brand:	Omron
Product description	CONN FPC TOP 18POS 0.50MM R/A
Datasheets:	XF2L-1825-1A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	54683 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 54683 pcs

Reference Price (In US Dollars)

1 pcs: $0.556

10 pcs: $0.503

25 pcs: $0.472

50 pcs: $0.452

100 pcs: $0.431

250 pcs: $0.39

500 pcs: $0.359

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.556

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of XF2L-1825-1A

Part Number	XF2L-1825-1A	Manufacturer	Omron
Description	CONN FPC TOP 18POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	54683 pcs	Data sheet	XF2L-1825-1A.pdf
Voltage Rating	50V	Termination	Solder
Series	XF2L	Pitch	0.020" (0.50mm)
Packaging	Cut Tape (CT)	Other Names	OR759CT XF2L18251A
Operating Temperature	-30°C ~ 85°C	Number of Positions	18
Mounting Type	Surface Mount, Right Angle	Mating Cycles	20
Material Flammability Rating	UL94 V-0	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Housing Color	Natural	Height Above Board	0.047" (1.20mm)
Flat Flex Type	FPC	Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	18 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Copper Alloy
Contact Finish Thickness	5.90µin (0.150µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Top	Cable End Type	Straight
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free	Actuator Color	Black
