BM03B-ZESS-TBT(LF)(SN)

JST

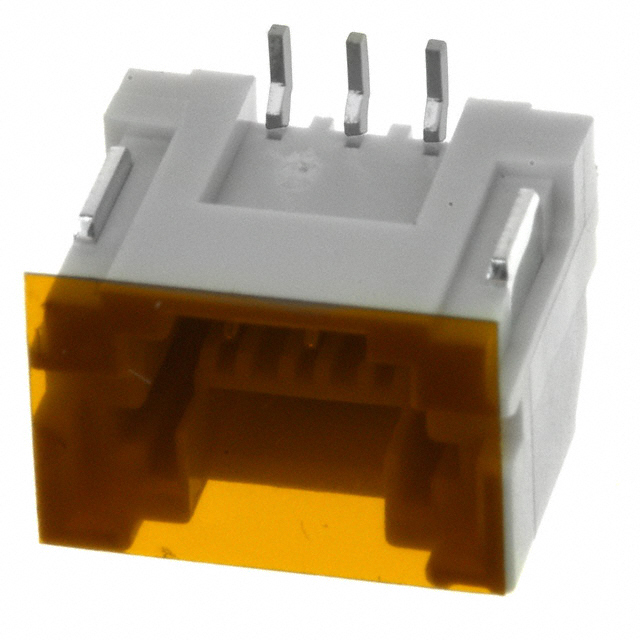

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BM03B-ZESS-TBT(LF)(SN)
Manufacturer/Brand:	JST
Product description	CONN HEADER VERT SMD 3POS ZE
Datasheets:	BM03B-ZESS-TBT(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	220323 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 220323 pcs

Reference Price (In US Dollars)

800 pcs: $0.135

1600 pcs: $0.12

2400 pcs: $0.112

5600 pcs: $0.109

8000 pcs: $0.101

20000 pcs: $0.10

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.135

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BM03B-ZESS-TBT(LF)(SN)

Part Number	BM03B-ZESS-TBT(LF)(SN)	Manufacturer	JST
Description	CONN HEADER VERT SMD 3POS ZE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	220323 pcs	Data sheet	BM03B-ZESS-TBT(LF)(SN).pdf
Voltage Rating	100V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	ZE	Row Spacing - Mating	-
Pitch - Mating	0.059" (1.50mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	455-2381-2 BM03B-ZESS-TBT (LF)(SN) BM03BZESSTBTLFSN
Operating Temperature	-25°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	9.4mm
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.295" (7.50mm)
Insulation Color	Natural	Ingress Protection	-
Features	Pick and Place, Solder Retention	Fastening Type	Locking Ramp
Detailed Description	Connector Header Surface Mount 3 position 0.059" (1.50mm)	Current Rating	2A
Contact Type	Outer Shroud Contact	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
