JST

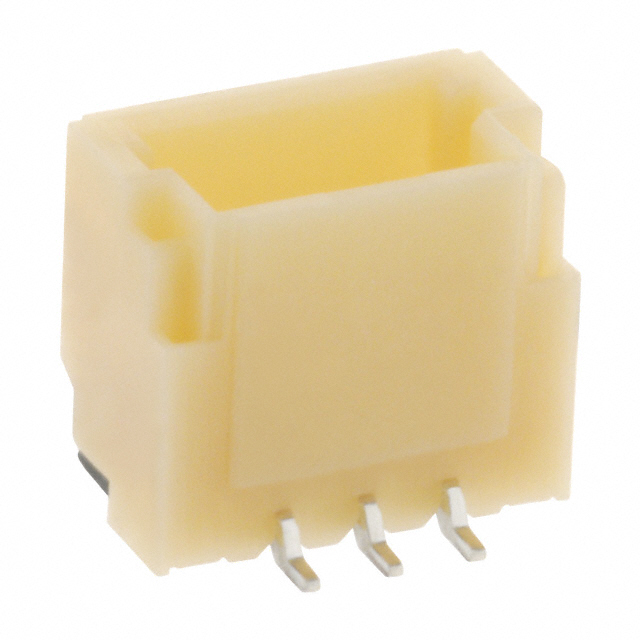

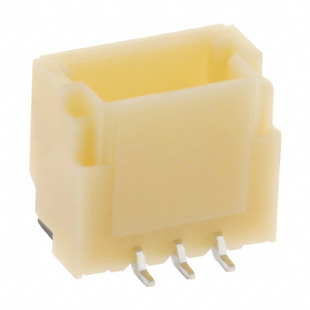

| Part Number | BM03B-SRSS-TB | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER SH 3POS TOP 1MM TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5128 pcs | Data sheet | BM03B-SRSS-TB.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | SR | Row Spacing - Mating | - |
| Pitch - Mating | 0.039" (1.00mm) | Packaging | Cut Tape (CT) |
| Overall Contact Length | - | Other Names | 455-1407-1 BM03BSRSSTB |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 4.9mm |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.167" (4.25mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 3 position 0.039" (1.00mm) |
| Current Rating | 0.7A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | - |
