JST
| Part Number | BM04B-ACHFKS-GACN-ETF(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER ACHF SIDE 4POS 1.2MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 250766 pcs | Data sheet | BM04B-ACHFKS-GACN-ETF(LF)(SN).pdf |
| Voltage Rating | 50V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 3 Wall |
| Series | ACHF | Row Spacing - Mating | - |
| Pitch - Mating | 0.047" (1.20mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | 455-2920-2 BM04BACHFKSGACNETFLFSN |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polymer | Insulation Height | 0.056" (1.43mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Detent Lock |

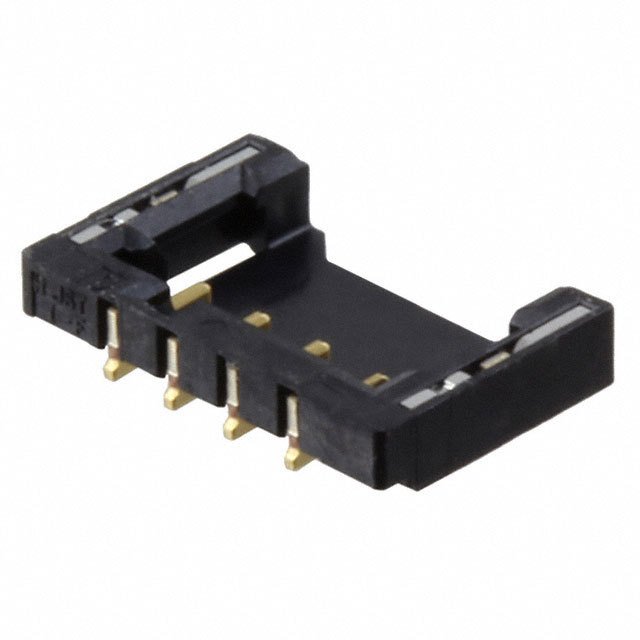

| Detailed Description | Connector Header Surface Mount, Right Angle 4 position 0.047" (1.20mm) | Current Rating | 2.5A |
| Contact Type | Male Blade | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
