M300-MV31045M1

Harwin

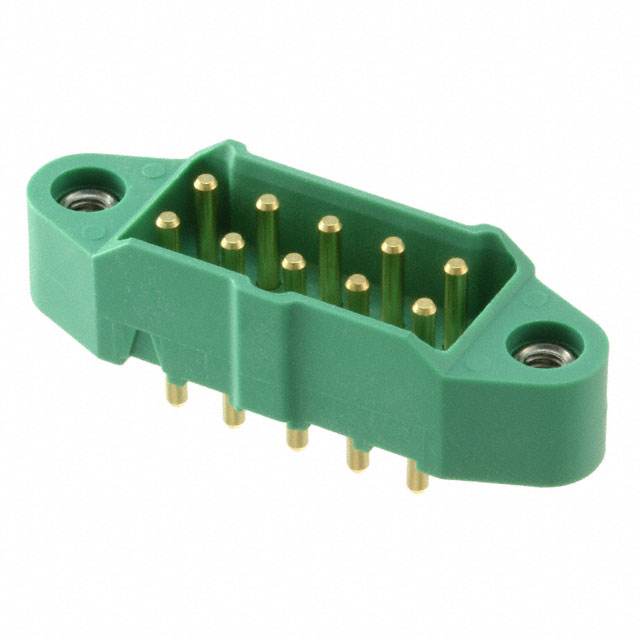

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M300-MV31045M1
Manufacturer/Brand:	Harwin
Product description	CONN HDR 3MM VERT PCB 10POS
Datasheets:	1.M300-MV31045M1.pdf 2.M300-MV31045M1.pdf 3.M300-MV31045M1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11839 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11839 pcs

Reference Price (In US Dollars)

1 pcs: $2.796

18 pcs: $2.681

108 pcs: $2.215

504 pcs: $1.865

1008 pcs: $1.632

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.796

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M300-MV31045M1

Part Number	M300-MV31045M1	Manufacturer	Harwin
Description	CONN HDR 3MM VERT PCB 10POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11839 pcs	Data sheet	1.M300-MV31045M1.pdf 2.M300-MV31045M1.pdf 3.M300-MV31045M1.pdf
Voltage Rating	600VAC/DC	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	M300	Row Spacing - Mating	0.118" (3.00mm)
Pitch - Mating	0.118" (3.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	952-3085
Operating Temperature	-65°C ~ 175°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	8.90mm, 14.10mm, 14.90mm, 19.75mm
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled	Insulation Height	0.276" (7.00mm)
Insulation Color	Green	Ingress Protection	-
Features	Mating Flange	Fastening Type	Threaded
Detailed Description	Connector Header Through Hole 10 position 0.118" (3.00mm)	Current Rating	10A
Contact Type	Male Pin, Power	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	29.5µin (0.75µm)	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
