M300-MV10345M1

Harwin

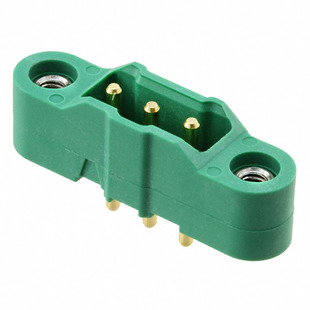

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M300-MV10345M1
Manufacturer/Brand:	Harwin
Product description	CONN HDR 3MM VERT PCB 3POS
Datasheets:	1.M300-MV10345M1.pdf 2.M300-MV10345M1.pdf 3.M300-MV10345M1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20366 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 20366 pcs

Reference Price (In US Dollars)

1 pcs: $1.806

12 pcs: $1.732

108 pcs: $1.444

504 pcs: $1.227

1008 pcs: $1.047

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.806

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M300-MV10345M1

Part Number	M300-MV10345M1	Manufacturer	Harwin
Description	CONN HDR 3MM VERT PCB 3POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20366 pcs	Data sheet	1.M300-MV10345M1.pdf 2.M300-MV10345M1.pdf 3.M300-MV10345M1.pdf
Voltage Rating	600VAC/DC	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	M300	Row Spacing - Mating	-
Pitch - Mating	0.118" (3.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	952-2522-5
Operating Temperature	-65°C ~ 175°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	8.90mm, 14.10mm, 14.90mm, 19.75mm
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled	Insulation Height	0.276" (7.00mm)
Insulation Color	Green	Ingress Protection	-
Features	Mating Flange	Fastening Type	Threaded
Detailed Description	Connector Header Through Hole 3 position 0.118" (3.00mm)	Current Rating	10A
Contact Type	Male Pin, Power	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	29.5µin (0.75µm)	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
