Harwin

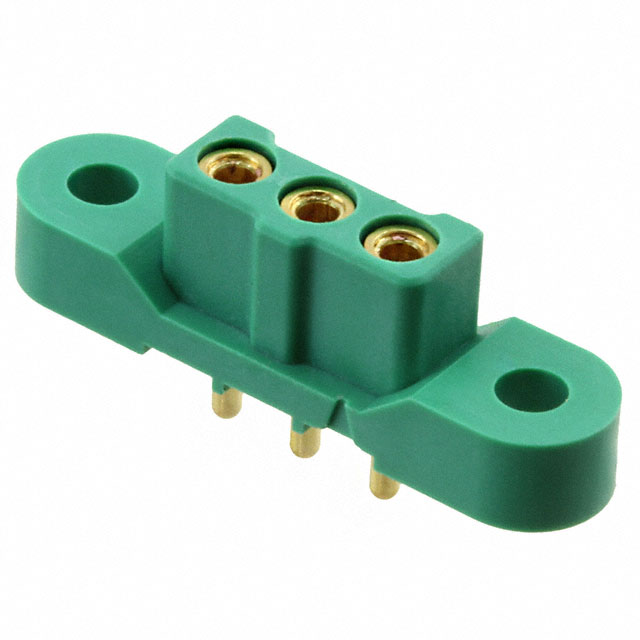

| Part Number | M300-FV1034500 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN FEM HDR 3MM VERT PCB 3POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11403 pcs | Data sheet | 1.M300-FV1034500.pdf2.M300-FV1034500.pdf3.M300-FV1034500.pdf |
| Voltage Rating | 600V | Termination | Solder |
| Style | Board to Board or Cable | Series | M300 |
| Row Spacing - Mating | - | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tube | Other Names | 952-2524-5 |
| Operating Temperature | -65°C ~ 175°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 8.9mm, 13.8mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 0.256" (6.50mm) |
| Insulation Color | Green | Ingress Protection | - |
| Features | Mating Flange | Fastening Type | - |
| Detailed Description | 3 Position Receptacle Connector 0.118" (3.00mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket, Power | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Telecommunications |
