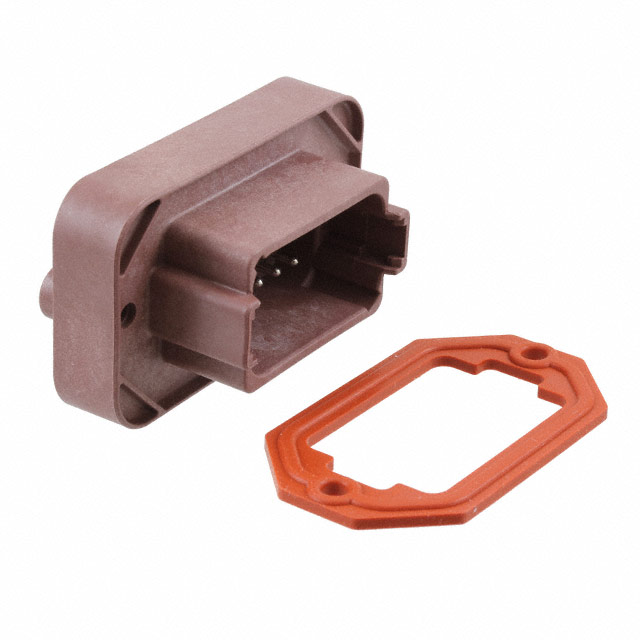

Agastat Relays / TE Connectivity
| Part Number | DT15-12PD | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DT RECP ASM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9356 pcs | Data sheet | DT15-12PD.pdf |
| Voltage Rating | 250VDC | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | DT | Pitch - Mating | 0.175" (4.44mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1734-1029 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Panel Mount, Through Hole |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 1.185" (30.10mm) |
| Insulation Color | Brown | Features | Mounting Flange |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Panel Mount, Through Hole 12 position 0.175" (4.44mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.122" (3.10mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Nickel |
| Connector Type | Header | Applications | Automotive |
