Agastat Relays / TE Connectivity
| Part Number | DT15-12PB | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DT RECP ASM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7394 pcs | Data sheet | DT15-12PB.pdf |
| Voltage Rating | 250VDC | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | DT | Pitch - Mating | 0.175" (4.44mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1734-1028 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 1.185" (30.10mm) | Insulation Color | Black |
| Features | Mounting Flange | Fastening Type | Latch Holder |

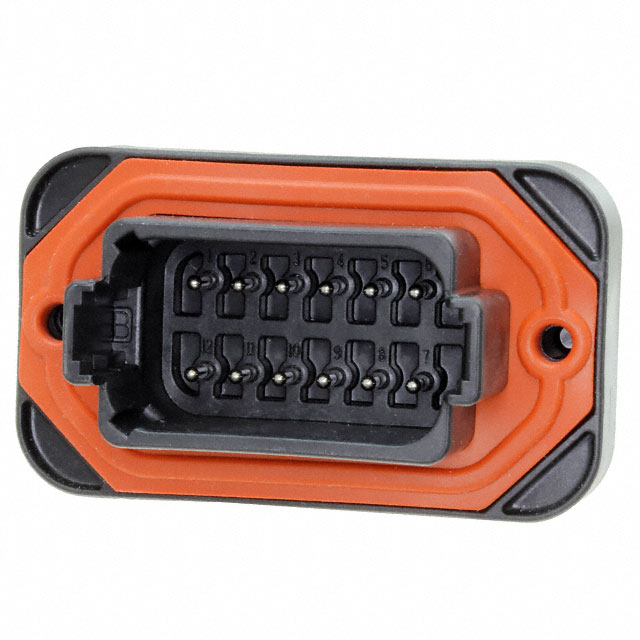

| Detailed Description | Connector Header Panel Mount, Through Hole 12 position 0.175" (4.44mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.122" (3.10mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Nickel | Connector Type | Header |
| Applications | Automotive |
